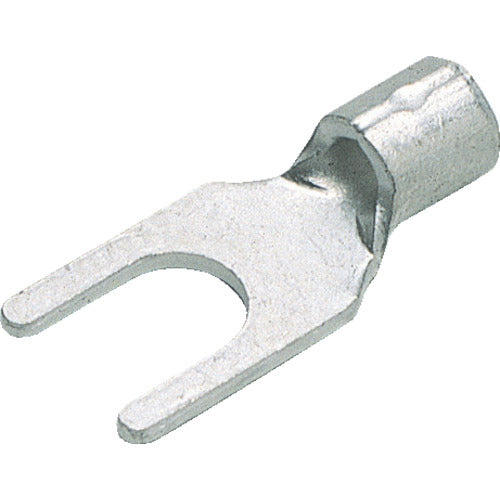

Solderless Terminal 1010020400050 TRUSCO

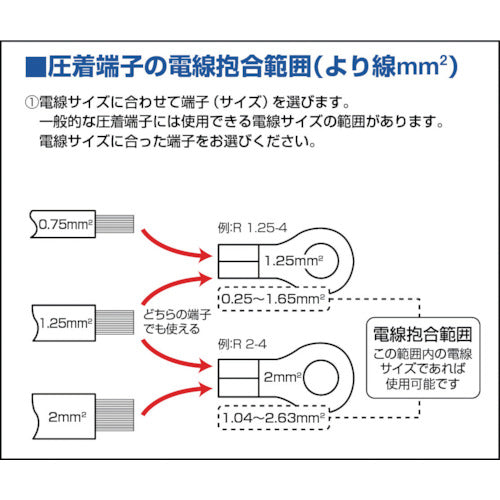

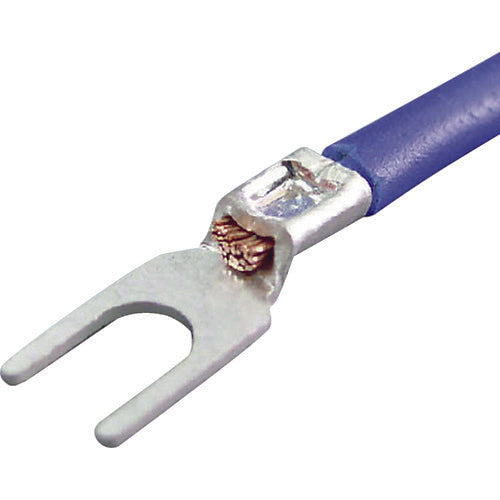

A bare crimp terminal which one side of the mounting hole of the contact surface (tongue) is open and can be attached even without completely removing the screw.For connection of mild steel stranded wire or single electrical wire.Single Wire mm:1.14 to 1.82Stranded Wire ([[MM2]]):1.04 to 2.63Electrical Wire Tying Range AWG:16-14Outer Dimensions (mm):8.0Stud Diameter (mm):4.3Total Length (mm):16.0Internal Dimensions (mm):2.3JIS Standard Product:xForked Shape/Single wire typeCompatible Tool: for Bare Crimp Terminal/Sleeve ToolTerminal: Oxygen-Free Copper (C1020)/Electro Tin Plating
