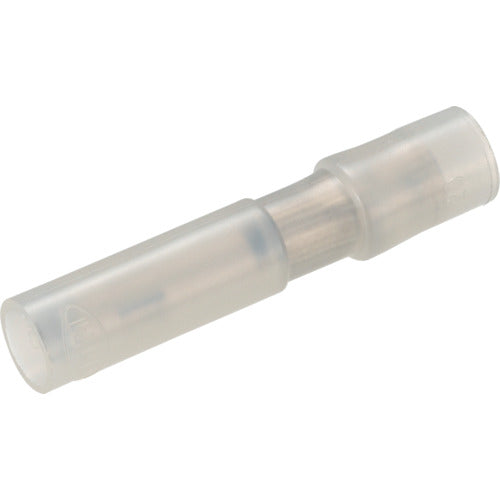

Insulating Coating Pin Terminal 3312005000653 TRUSCO

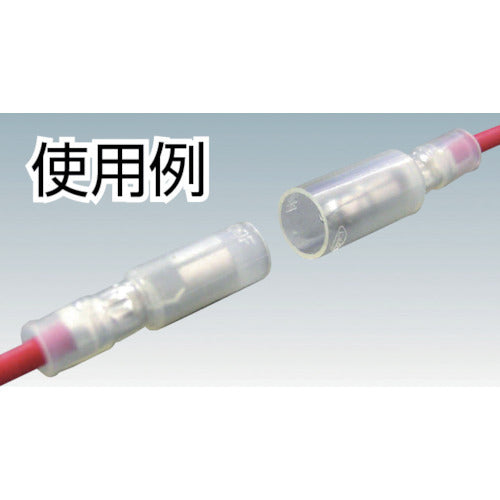

Cable connections, relay can be done with one touch plug-in and out.For wire connection and relay in the equipment with the combination (fitting) of the male side (M) and the female side (F).Stranded Wire ([[MM2]]):0.50 to 0.75Electrical Wire Tying Range AWG:20-18Color:TransparentShape:FemaleOuter Dimensions (mm):4.6F (mm):13.0Total Length (mm):24.5Internal Dimensions (mm):1.7Rated Voltage: 300VCompatible Tool: Crimped Terminal with Insulated Coating/Sleeve ToolTerminal: Brass(C2680)/Electro tin platingInsulator: Nylon
