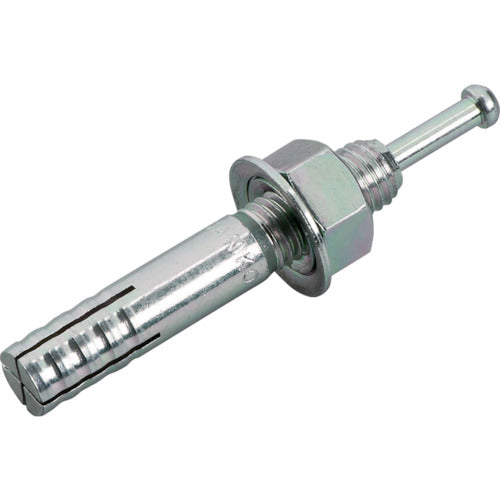

All Anchor C-1619 SANKO

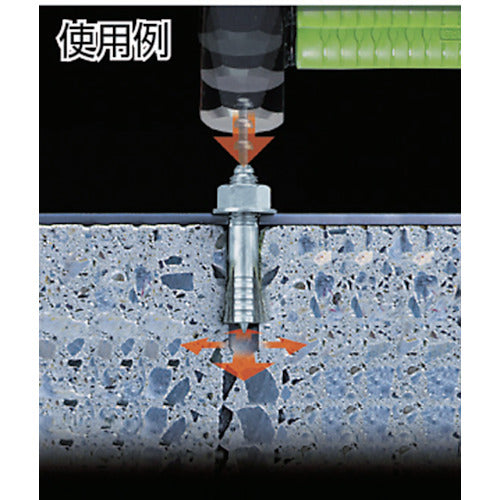

Since the construction will be done only by driving the core bar, you can easily check the completion of construction at glance.Because the main body and threaded portion have the same diameter, drilling to concrete is completed with a small diameter.For construction work, civil engineering work, electrical work, machine equipment construction etc.Nominal Designation of Thread:M16Total Length (mm):190Screw Length (mm):50Max Attachment Thickness (mm):110Pilot Hole Diameter (mm):17.0Maximum Tensile Load (kN):29.9Buried Depth (mm):60SteelSurface treatment: Trivalent chromate treatmentThe maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].
