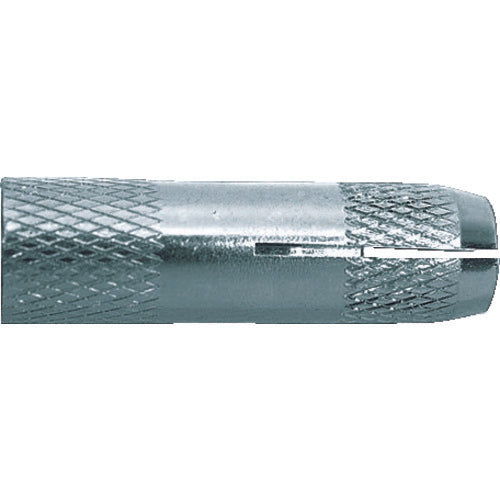

CT Anchor CT-1040 SANKO

Because uniform construction in concrete surface is possible, excellent in aesthetic.Completion of construction can be checked by using special hand holder.Nominal Designation of Thread:M10Outer Diameter (mm):12.5Total Length (mm):40Screw Length (mm):16Drill Diameter (mm):13.0Maximum Tensile Load (kN):15.6Packaged in a boxSteelSurface treatment: Trivalent chromate treatmentThe maximum tensile load is the value at the concrete strength Fc21N/[[MM2]].A special hand holder is required for construction.
