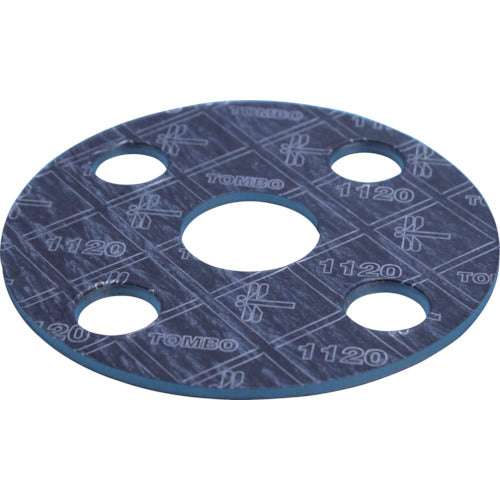

Joint Sheet Gasket 1120-10K-65A-3T-FF NICHIASU

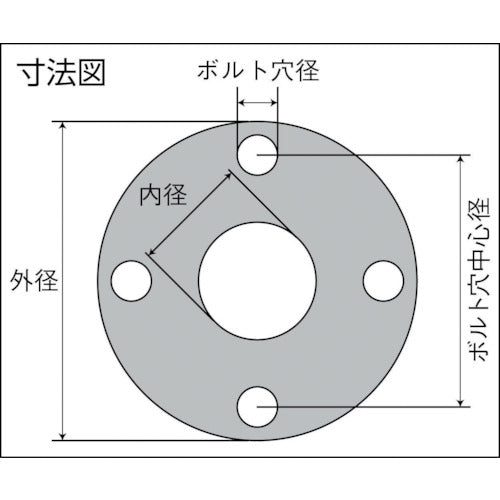

Main components are expanded graphite, aramid fiber, and NBR rubber. Has excellent sealing property, steam resistance, and chemical resistant property.Because of the small amount of soluble halogen, it can be used for stainless steel flange.JIS S 3200-7: 2010 Suitable for water supply equipment, leaching test.Various types of piping for low pressure steam, steam return, cold water, hot water, air conditioning unit drainage, etc.Nominal Diameter (A):65Nominal Diameter (B):2 1/2Inner Diameter (mm):84Outer Diameter (mm):175Thickness (mm):3.0Bolt Hole Center Diameter (mm):140Bolt Hole Number:4Bolt Hole Diameter (mm):19Working Temperature Range: -200 to 260degreesExpanded graphiteAramid FiberNBR
