NA Vortex Gasket 1834NA-EOE 10/20K15A NICHIASU
NA Vortex Gasket 1834NA-EOE 10/20K15A NICHIASU
  • Load image into Gallery viewer, NA Vortex Gasket 1834NA-EOE 10/20K15A NICHIASU
  • Load image into Gallery viewer, NA Vortex Gasket 1834NA-EOE 10/20K15A NICHIASU

NA Vortex Gasket 1834NA-EOE 10/20K15A NICHIASU

【order ID】1151407
【basic item number】1834NAEOE1020K15A
【brand name】NICHIASU
【minimum order quantity】1Sheet
【packages】1
【manufacturer name】NICHIAS Corporation
【Country of origin】Japan,Malaysia
【Weight】40.000G

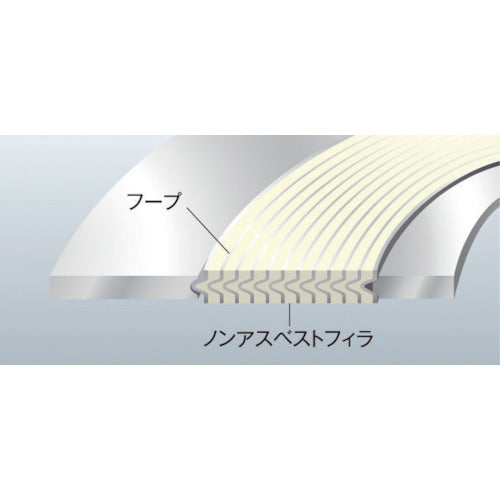

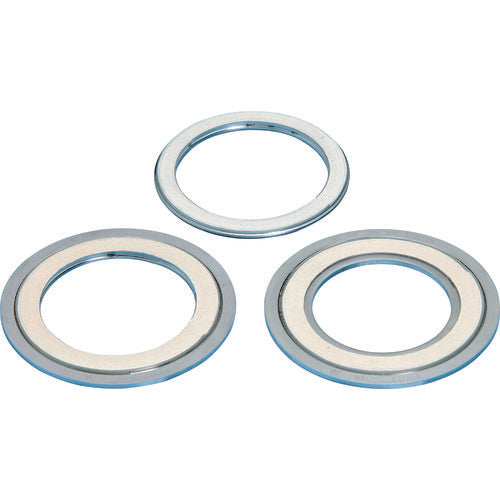

A hoop-shape metal sheet and a soft heat resistant paper are alternatively coiled in this economical spiral gasket.Has a characteristic sealing structure, allowing its use under high temperature and high pressure conditions.It goes well with a flange and can seal with a lower tightening force compared to a metal gasket.A gasket for flanges of various piping and equipment.Nominal Diameter (A):15Nominal Diameter (B):1/2Inner Diameter (mm):28Outer Diameter (mm):57Thickness (mm):4.5Working Pressure (K):10/20Working Temperature Range: -29 to 350degreesFiller Material: Non-asbestos paperHoop Material: SUS304Outer Ring Material: SUS304
