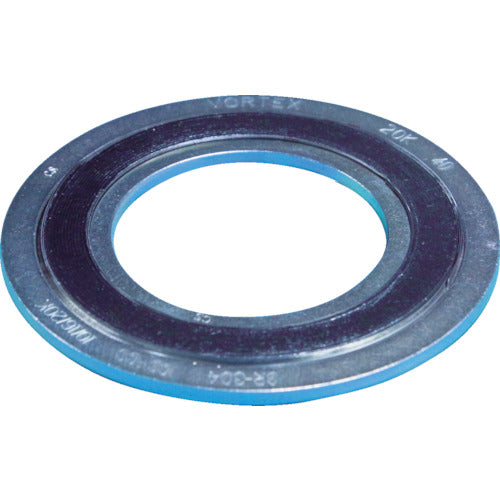

GR Vortex Gasket 1834R-GR-ESS T4.5X10K/20KX20A NICHIASU
GR Vortex Gasket 1834R-GR-ESS T4.5X10K/20KX20A NICHIASU
  • Load image into Gallery viewer, GR Vortex Gasket 1834R-GR-ESS T4.5X10K/20KX20A NICHIASU
  • Load image into Gallery viewer, GR Vortex Gasket 1834R-GR-ESS T4.5X10K/20KX20A NICHIASU

GR Vortex Gasket 1834R-GR-ESS T4.5X10K/20KX20A NICHIASU

【order ID】1144068
【basic item number】1834RGRESST4.5X10K20KX20A
【brand name】NICHIASU
【minimum order quantity】1Sheet
【packages】1
【manufacturer name】NICHIAS Corporation
【Country of origin】Japan,Malaysia
【Weight】50.000G

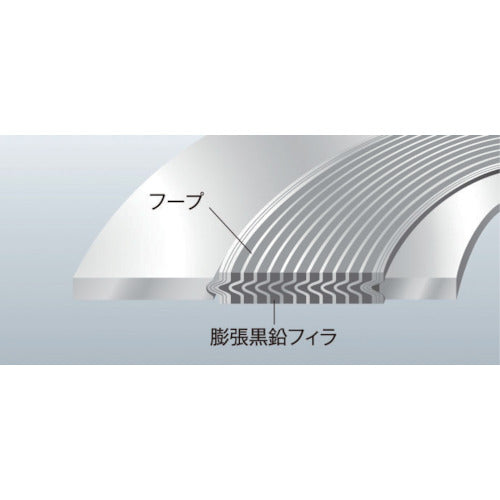

A hoop-shape metal sheet and GRASEAL that has excellent sealing property are alternatively coiled in this gasket.Demonstrates excellent sealing property under harsh conditions such as high temperature and high pressure, extremely low temperature, and heat cycles.It goes well with a flange and can seal with a lower tightening force compared to a metal gasket.For areas requiring strict sealing property, such as gas stream.Nominal Diameter (A):20Nominal Diameter (B):3/4Inner Diameter (mm):28Outer Diameter (mm):62Thickness (mm):4.5Working Pressure (K):10K/20KWorking Temperature Range: -240 to 450degreesFiller Material: GRASEALHoop Material: SUS304Inner and Outer Ring Material: SPCC

¥1,381
¥1,381
Sold out
