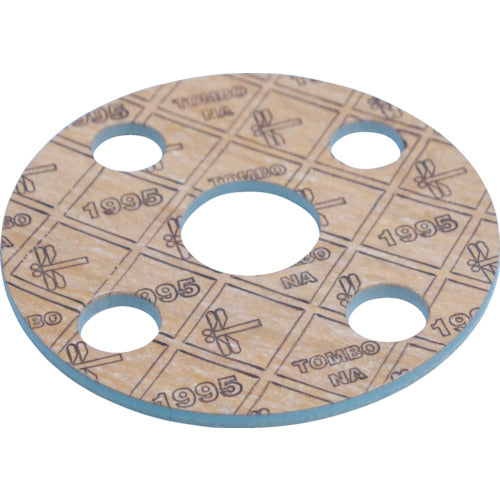

Joint Sheet Gasket 1995-5K-80A-1.5T-FF NICHIASU

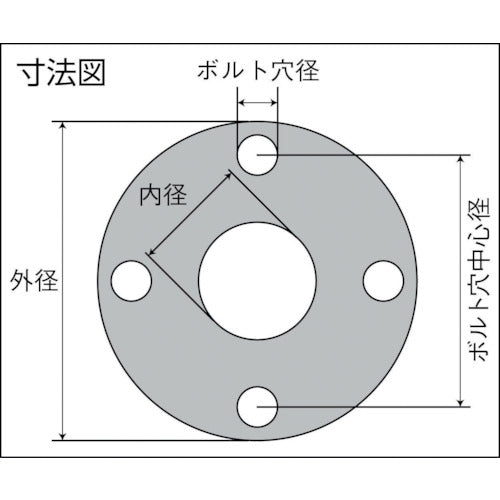

Main components are aramid fiber, NBR rubber, and inorganic filler. Has excellent sealing property.Because of the small amount of soluble halogen, it can be used for stainless steel flange.JIS S 3200-7: 2010 Suitable for water supply equipment, leaching test.Various piping mainly under 100 degrees, such as cold water, hot water, refrigerant, air drain, oil, air, brine etc.Nominal Diameter (A):80Nominal Diameter (B):3Inner Diameter (mm):90Outer Diameter (mm):180Thickness (mm):1.5Bolt Hole Center Diameter (mm):145Bolt Hole Number:4Bolt Hole Diameter (mm):19Working Temperature Range: -100 to 183degreesCInorganic fillerAramid FiberNBR
