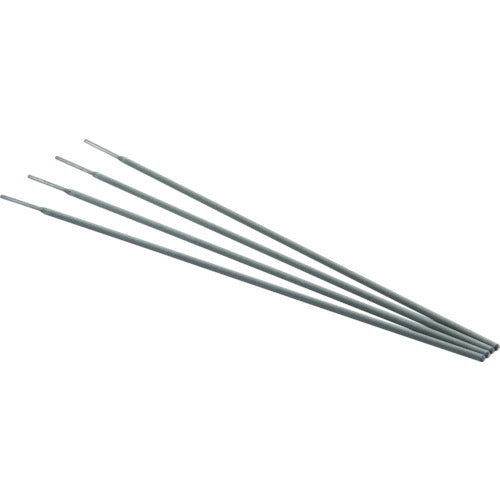

Welding Rod for General Mild Steel TSR2-2610 TRUSCO

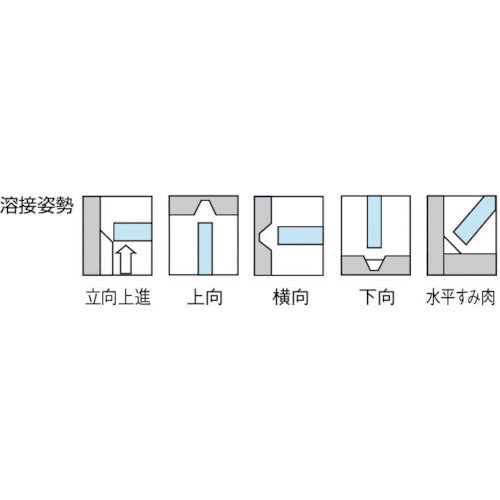

Lime citrus type welding rod containing approx. 30% iron powder in coating material, excellent re-arc property, good bead elongation, weldable in all positions such as intermittent welding, fillet welding, tack welding (temporary attachment).For welding thick plates from iron thick plates. (thick plates can also be welded by performing multi-layering)For the welding of general structures such as vehicles using mild steel, lightweight steel frames, and buildings.Core Wire Diameter (mm):?32.6Rod Length (mm):350Applicable Board Thickness (mm):4 to 7Downward:60 to 100Current Range (A) Vertical Improvement Progress/Upward:50 to 90Estimated Q'ty Per Pack (piece):39JIS Z3211 E4303 Standard Product (lime citric system based welding rod)Bottom Color: Red
