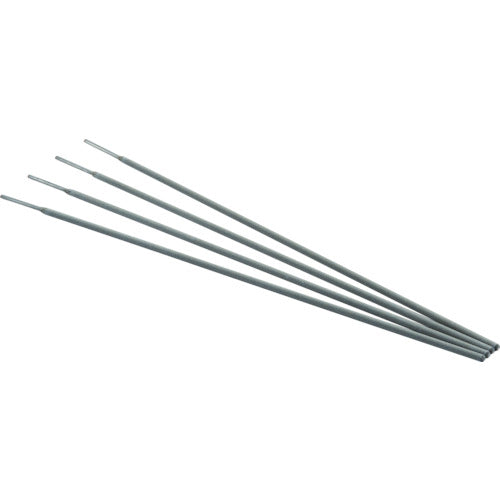

Welding Rod for General Mild Steel TSR2-405 TRUSCO

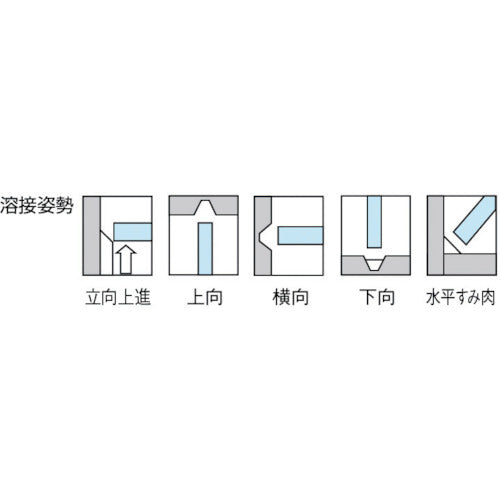

Lime-titania type welding rod containing approx. 30% iron powder in coating material, excellent re-arc property, good bead elongation, weldable in all positions such as intermittent welding, fillet welding, tack welding (temporary attachment).For welding thick plates from iron thick plates. (thick plates can also be welded by performing multi-layering)For the welding of general structures such as vehicles using mild steel, lightweight steel frames, and buildings.Core Wire Diameter (mm):phi4.0Rod Length (mm):450Applicable Board Thickness (mm):6.0 to 20.0Current Range (A)Downward:140 to 200Current Range (A)Vertical Improvement Progress/Upward:110 to 170Estimated Q'ty Per Pack (piece):7Stick Color: RedJIS Z3211 E4303 Standard Product (lime-titania type welding rod)
