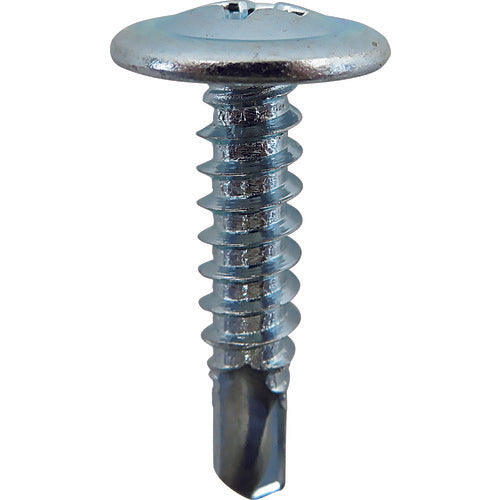

Self Drilling Screw Washers Head 00046625 DAIDOHANT

【Features】

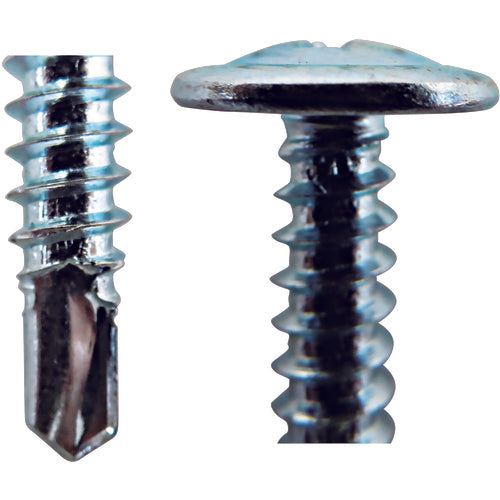

Outstanding workability and excellent fastening force.
Can be screwed into steel plates up to 1.6 to 3.2 mm thick without a pilot hole.
Characteristics of the thin washer head: Because the head height is low, the protrusion of the head is less noticeable, and it is used for overlapped parts of siding and spandrels.

【Use】
For joining thin iron plates and C-shaped steel.

【Specification】

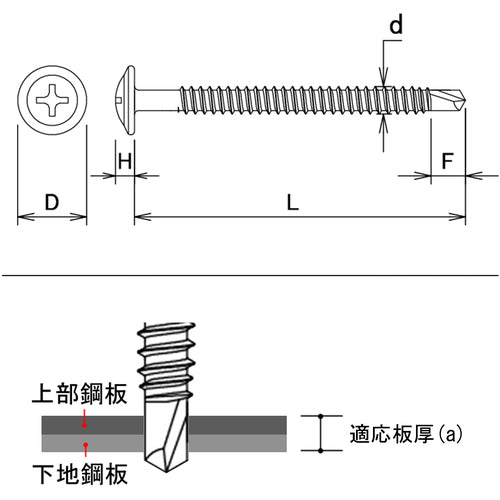

Head diameter (mm): 10.8
Compatible screwdriver: Cross No. 2

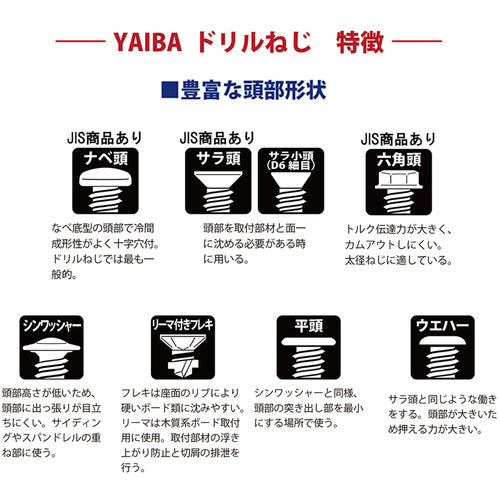

Head shape: Thin washer
Drill tip (F) (mm): 5
Steel plate thickness (mm): 1.6 to 3.2
Nominal dimensions ( mm)d: 4
Nominal size (mm)L: 16
Head height (mm): 2.3

【Specification2】
－

【Material/Finish】
Steel (SWCH18A)
Surface treatment: Trivalent Unichrome

【Set contents/accessories】
－

【caution】
Please use drill screws suitable for the fastener.
When using, please tighten to the appropriate torque to avoid insufficient screwing, screw damage, and head popping.
Please install the drill screw perpendicular to the fastener.
Wear safety goggles when driving screws.
