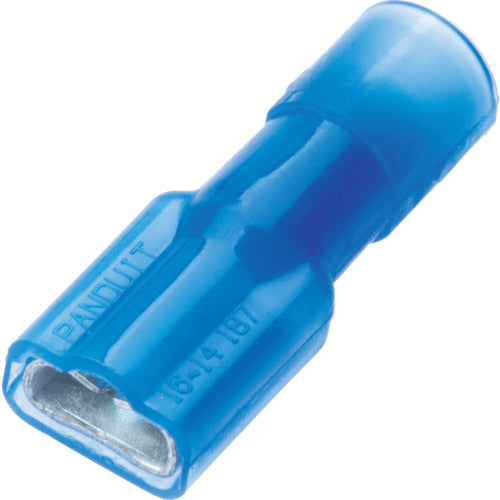

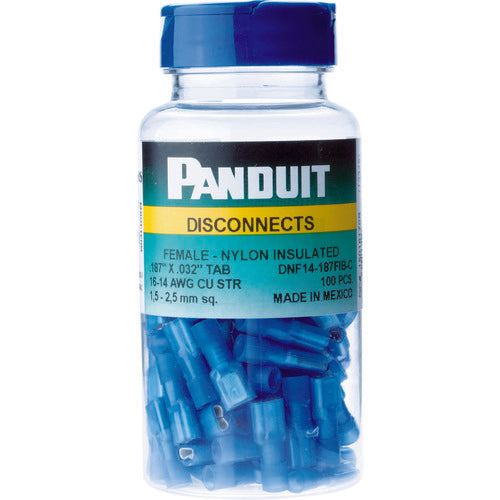

Insulating Coating Pin Terminal DNF14-206FIB-C PANDUIT
Insulating Coating Pin Terminal DNF14-206FIB-C PANDUIT
  • Load image into Gallery viewer, Insulating Coating Pin Terminal DNF14-206FIB-C PANDUIT
  • Load image into Gallery viewer, Insulating Coating Pin Terminal DNF14-206FIB-C PANDUIT

Insulating Coating Pin Terminal DNF14-206FIB-C PANDUIT

【order ID】4973208
【basic item number】DNF14206FIBC
【brand name】PANDUIT
【minimum order quantity】1Pack
【packages】100
【manufacturer name】Panduit Corp. Japan Branch.
【Country of origin】USA
【Weight】108.000G

Due to disconnection fully insulated with nylon, no insulation cover such as sleeve is necessary.Since there is a cable stopper inside the barrel, the cable can be inserted to an appropriate position.For fitting of copper wire.Stranded Wire ([[MM2]]):1.50 to 2.5Electrical Wire Tying Range AWG:16 to 14Color:BlueOuter Dimensions (mm):7.9Total Length (mm):19.8Tab size(mm):5.2/4.75 x 0.5Max working temperature: 105C(indoor)Rated Voltage: 600VUL310 acquiredBrassTin platingNylon 66

¥2,786
¥2,786
