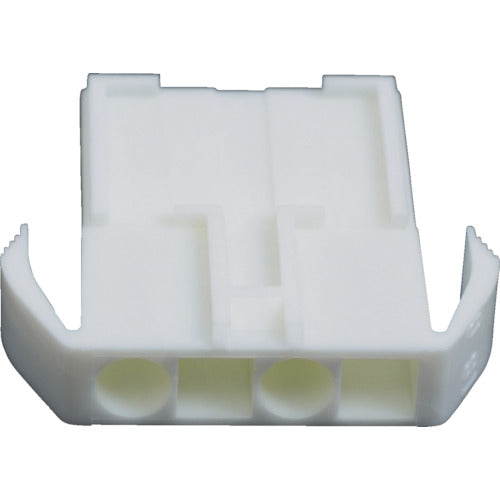

EL CONNECTOR Housing ELR-09V JST
EL CONNECTOR Housing ELR-09V JST
  • Load image into Gallery viewer, EL CONNECTOR Housing ELR-09V JST
  • Load image into Gallery viewer, EL CONNECTOR Housing ELR-09V JST

EL CONNECTOR Housing ELR-09V JST

【order ID】4137990
【basic item number】ELR09V
【brand name】JST
【minimum order quantity】1Pack
【packages】100
【manufacturer name】J.S.T. Mfg. Co.,Ltd.
【Country of origin】Japan
【Weight】336.000G

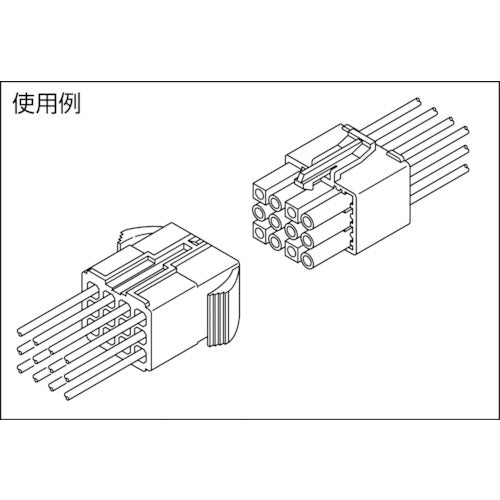

Adopted a contact that enables easy insertion and has excellent holding power.Compatible with ML connector.For relay connection.4.5mm pitch for wire to wire connection.Number of Poles:9A (mm):24.6B (mm):14.8C (mm):14.4Rated current: MAX 10ARated voltage: MAX 300VWorking Temperature Range: -25 to +90C(includes temperature increase value)Insulation Resistance: 1000M? or moreVoltage Resistance: AC1500V/1 Min.Applicable Cable Range: AWG#26 to #16, 0.13 to 1.25[[MM2]]Nylon 6(UL94V-0)

¥3,429
¥3,429
Sold out
