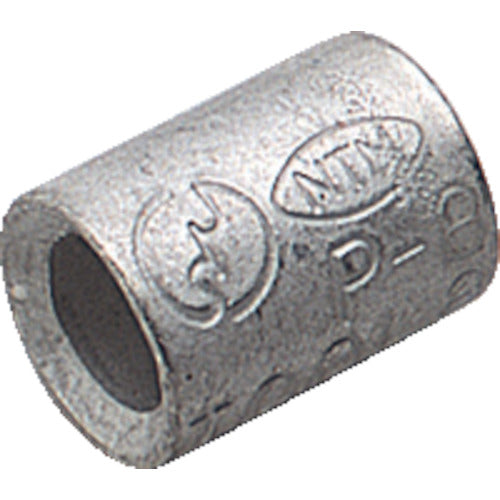

Non-Pressure Bonding Sleeve 1310020000050 TRUSCO
Non-Pressure Bonding Sleeve 1310020000050 TRUSCO
  • Load image into Gallery viewer, Non-Pressure Bonding Sleeve 1310020000050 TRUSCO
  • Load image into Gallery viewer, Non-Pressure Bonding Sleeve 1310020000050 TRUSCO

Non-Pressure Bonding Sleeve 1310020000050 TRUSCO

【order ID】2557495
【basic item number】TP2
【brand name】TRUSCO
【minimum order quantity】1Pack
【packages】10
【manufacturer name】TRUSCO NAKAYAMA CORPORATION
【Country of origin】Japan
【Weight】35.000G

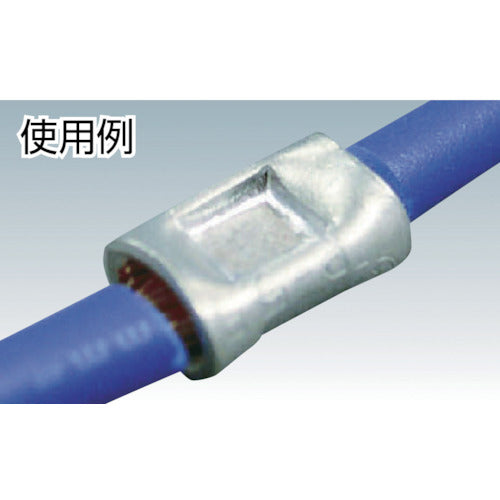

Cylinder is straight shape.For the crimping and connection of overlapping electric wires in the sleeve (in the tube part).Single Wire mm:-Stranded Wire ([[MM2]]):1.04 to 2.63Electrical Wire Tying Range AWG:16-14Total Length (mm):8.0Outer Dimensions (mm):4.1Internal Dimensions (mm):2.3JIS Standard Product:Compliance to JIS C2806 (exclude P-1.25)P TypeCompatible Tool: for Bare Crimp Terminal/Sleeve ToolOxygen-Free Copper (C1020)/Electro Tin Plating

¥771
¥771
Sold out
