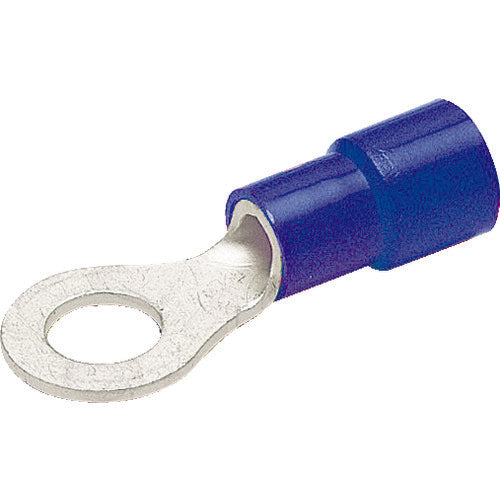

Insulating Coating Solderless Terminal 2900020350051 TRUSCO

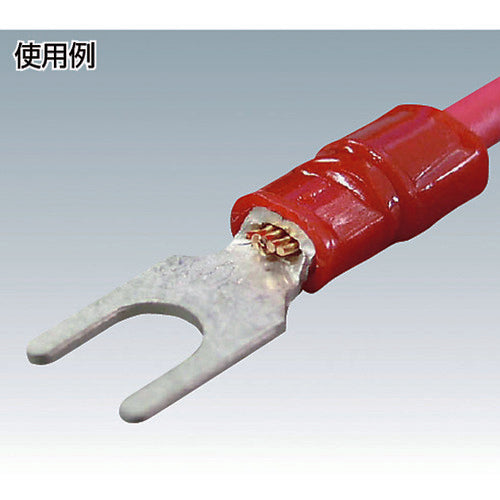

Insulated coating is preset in the cylinder part of the terminal.Shape of insulator: The TME type has an electric wire insertion guide(funnel type)inside the insulted coating part.The core wire can be smoothly inserted to the cylinder part along the guide with the coating being stripped without needing to twist the core wire.For connection of mild steel stranded wire.Electrical Wire Tying Range Stranded Wire (mm[[UE2]]):1.04 to 2.63Electrical Wire Tying Range AWG:16-14Color:BlueOuter Dimensions (mm):6.6Stud Diameter (mm):3.7Total Length (mm):19.9Internal Dimensions (mm):4.5JIS Standard Product:xSingle wire incompatibleRated Voltage: 600VWorking Temperature Range: -40 to 120degreesCTerminal: Oxygen-free copper(electro tin plating)Sleeve: Oxygen-free copper tube(electro tin plating)Insulator: Polycarbonate
