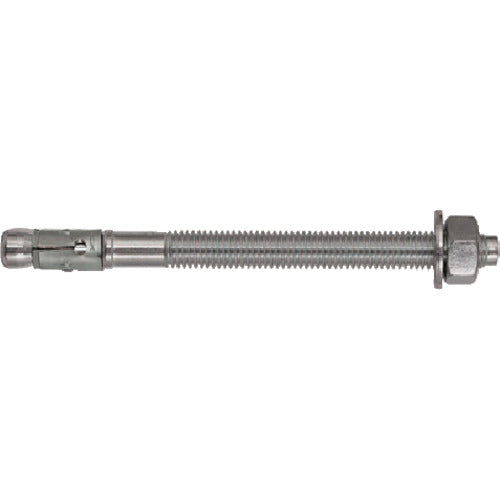

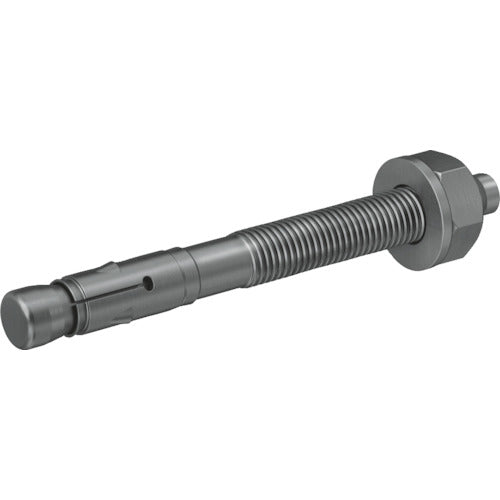

Bolt Anchor FAZ2 501403 Fisher

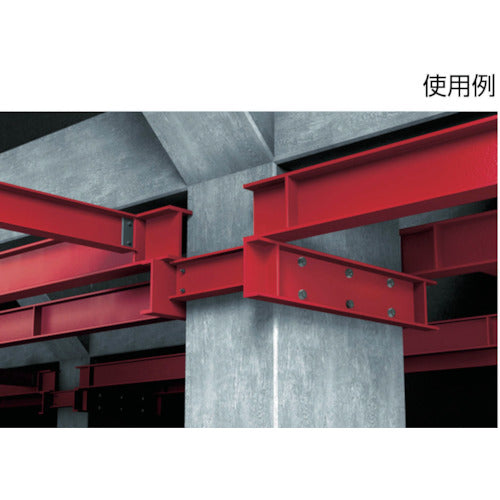

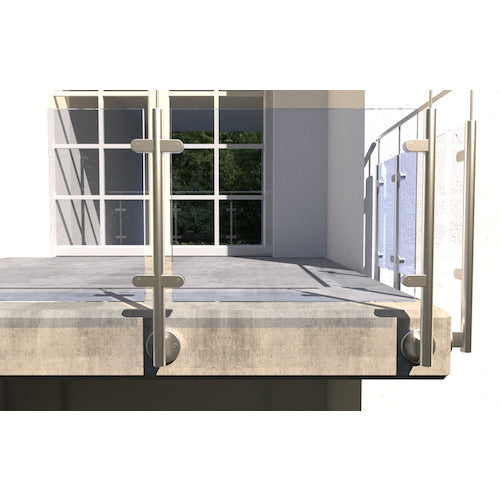

Fischer's original structured expansion sleeve enables the best load bearing capability.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.International certification ensures best safety and highest performance.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M10Total Length (mm):95Screw Length (mm):53Max Attachment Thickness (mm):10Drill Diameter (mm):10Standard Construction Torque (N\m):45Maximum Tensile Load (kN):7.6Max shear load(kN):11.4Effective buried depth(mm):60European Technical Approval(ETA-05/0069)Packaged in a boxStainless Steel (equivalent to SUS316)
