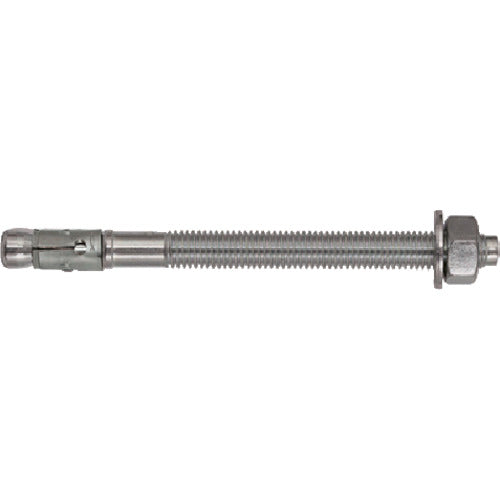

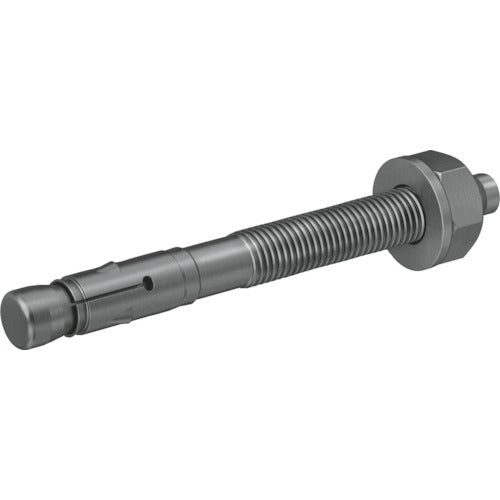

Bolt Anchor FAZ2 503183 Fisher

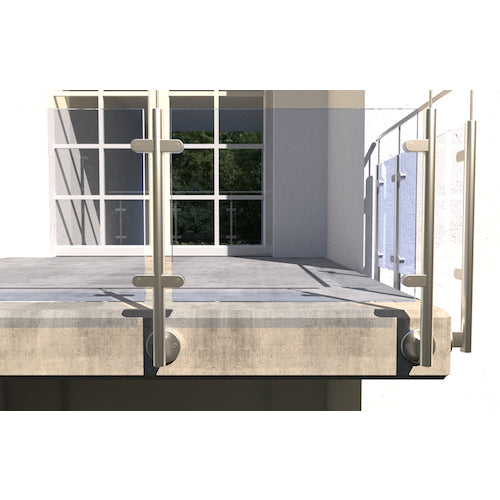

Fischer's original structured expansion sleeve enables the best load bearing capability.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.International certification ensures best safety and highest performance.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M20Total Length (mm):202Screw Length (mm):84Max Attachment Thickness (mm):60Drill Diameter (mm):20Standard Construction Torque (N\m):200Maximum Tensile Load (kN):24.0Max shear load(kN):40.0Effective buried depth(mm):100European Technical Approval(ETA-05/0069)Packaged in a boxStainless Steel (equivalent to SUS316)
