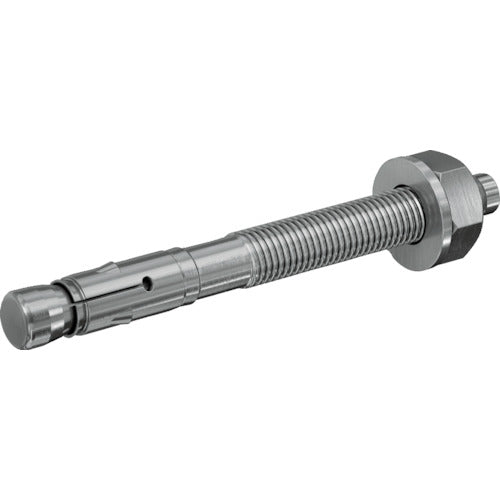

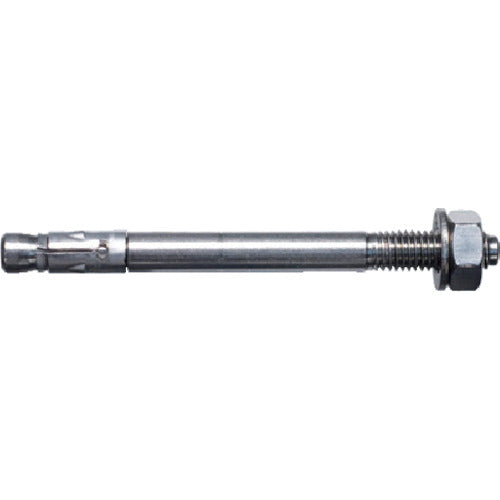

Bolt Anchor FAZ2 503186 Fisher

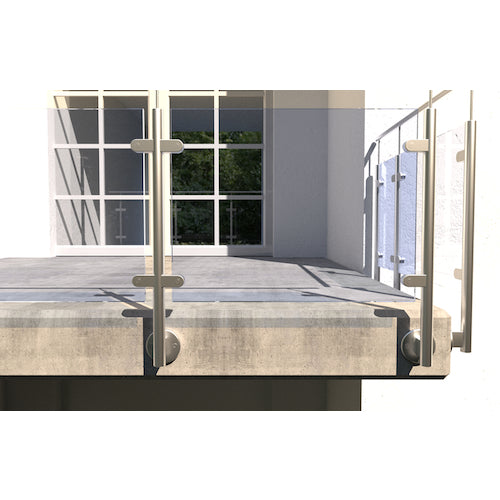

Fischer's original structured expansion sleeve enables the best load bearing capability.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.International certification ensures best safety and highest performance.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M12Total Length (mm):110Screw Length (mm):61Max Attachment Thickness (mm):10Drill Diameter (mm):12Standard Construction Torque (N\m):60Maximum Tensile Load (kN):11.9Max shear load(kN):16.9Effective buried depth(mm):70European Technical Approval(ETA-05/0069)Packaged in a boxHigh corrosion resistance stainless steel(SUS836L equivalent)
