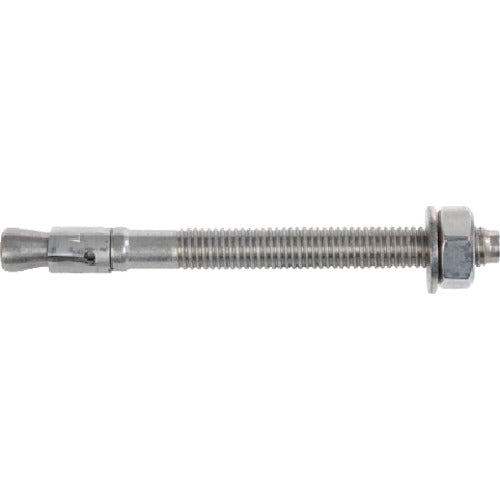

Bolt Anchor FBN2 507565 Fisher

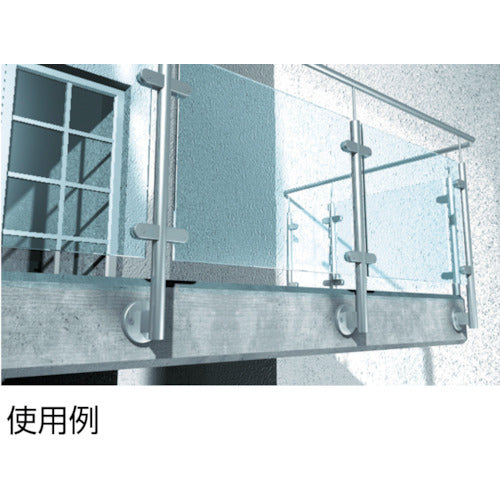

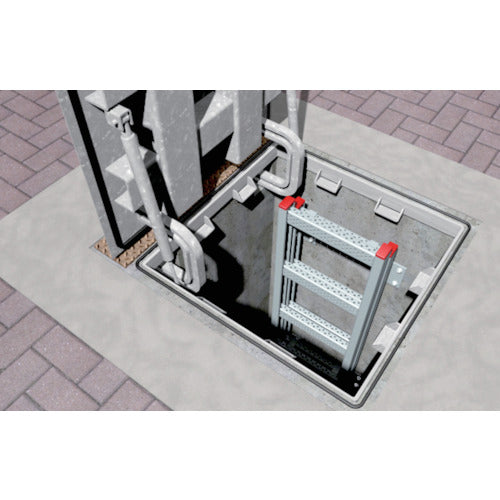

Wedge anchor for normal concrete with excellent cost performance.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.International certification ensures best safety and highest performance.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M12Total Length (mm):126Screw Length (mm):79Max Attachment Thickness (mm):30Drill Diameter (mm):12Standard Construction Torque (N\m):35Maximum Tensile Load (kN):12.6Max shear load(kN):15.7Effective buried depth(mm):65European Technical Approval(ETA-07/0211)Packaged in a boxStainless Steel (equivalent to SUS316)
