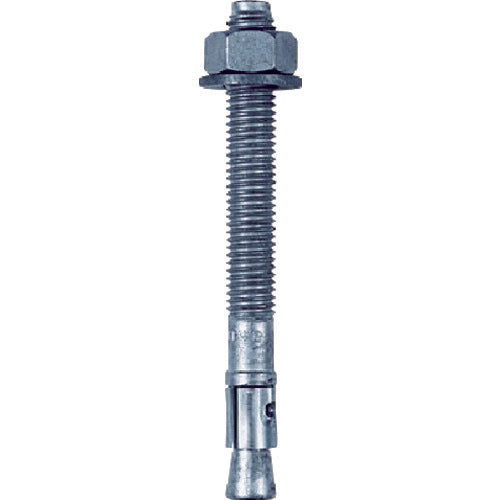

Bolt Anchor FBN2 507575 Fisher

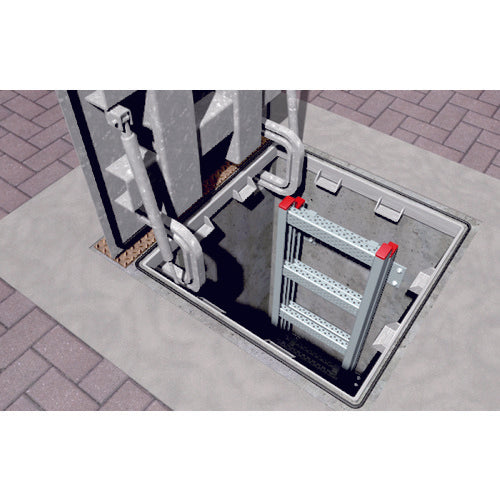

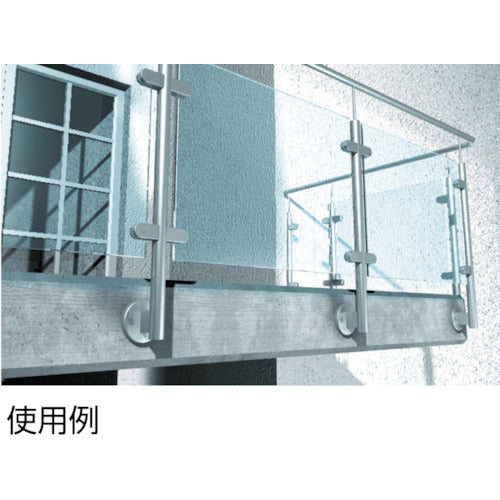

Fischer's original structured expansion sleeve enables the best load bearing capability.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M8Total Length (mm):71Screw Length (mm):39Max Attachment Thickness (mm):10Drill Diameter (mm):8Standard Construction Torque (N\m):15Maximum Tensile Load (kN):5.7Max shear load(kN):5.7Effective buried depth(mm):40European Technical Approval(ETA-07/0211)Packaged in a boxSteelSurface treatment: Hot-dip galvanized
