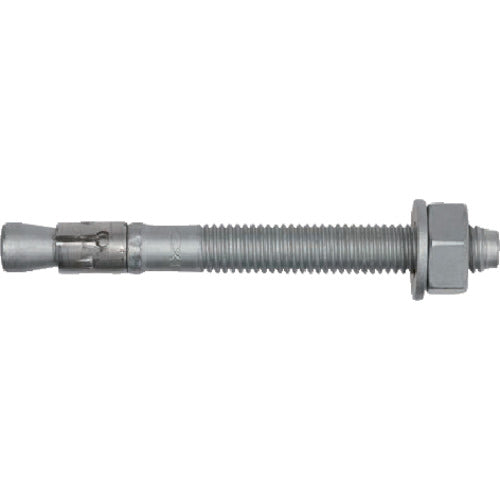

Bolt Anchor FBN2 507596 Fisher

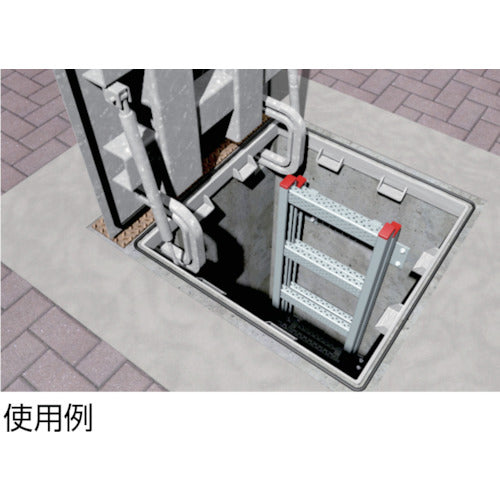

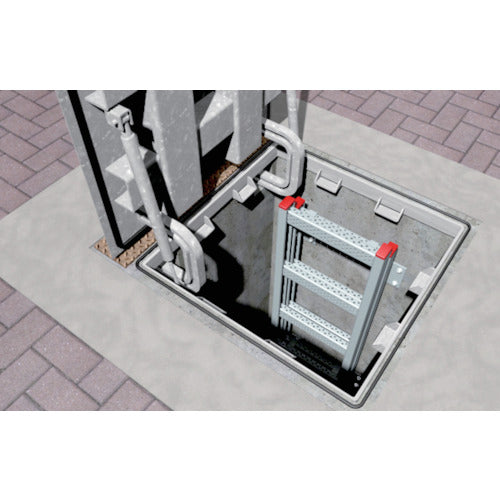

Fischer's original structured expansion sleeve enables the best load bearing capability.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M12Total Length (mm):196Screw Length (mm):149Max Attachment Thickness (mm):100Drill Diameter (mm):12Standard Construction Torque (N\m):50Maximum Tensile Load (kN):11.9Max shear load(kN):14.3Effective buried depth(mm):65European Technical Approval(ETA-07/0211)Packaged in a boxSteelSurface treatment: Hot-dip galvanized
