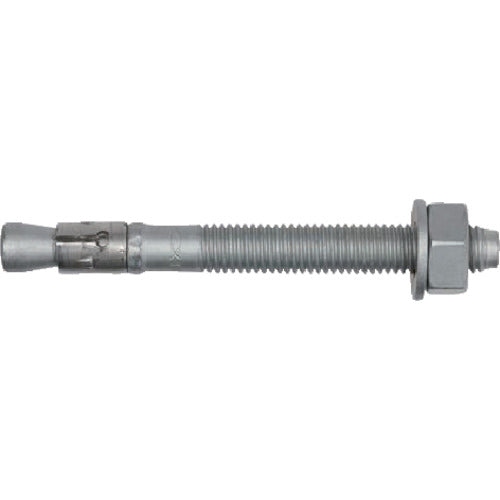

Bolt Anchor FBN2 507598 Fisher

【order ID】7794703
【basic item number】507598
【brand name】Fisher
【minimum order quantity】1Box
【packages】10
【manufacturer name】fischer holding GmbH & Co.
【Country of origin】Germany
【Weight】2352.000G

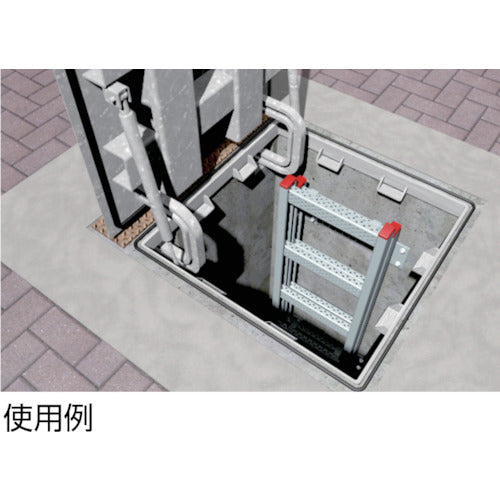

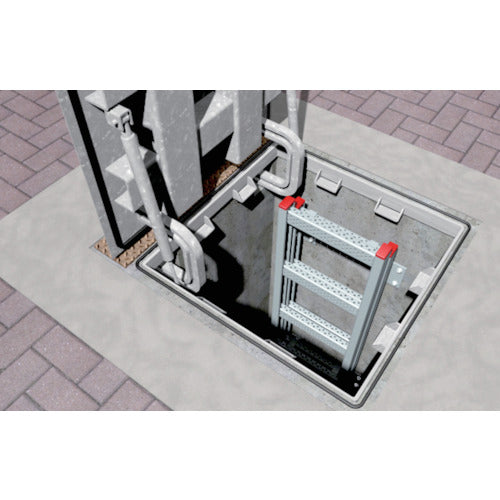

Fischer's original structured expansion sleeve enables the best load bearing capability.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M16Total Length (mm):145Screw Length (mm):89Max Attachment Thickness (mm):25Drill Diameter (mm):16Standard Construction Torque (N\m):100Maximum Tensile Load (kN):17.2Max shear load(kN):26.9Effective buried depth(mm):80European Technical Approval(ETA-07/0211)Packaged in a boxSteelSurface treatment: Hot-dip galvanized

¥7,375
¥7,375
Sold out

Delivery：approximate 2-3 business days to ship from Japan
