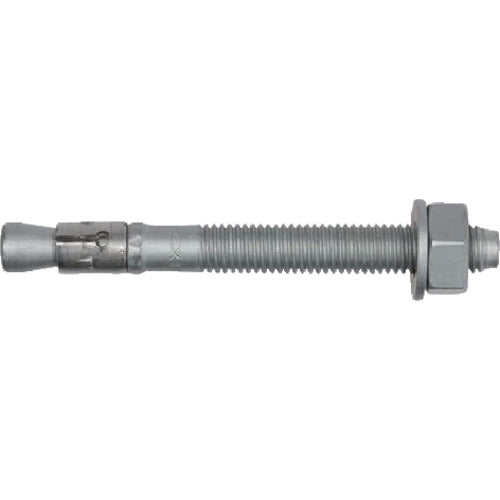

Bolt Anchor FBN2 508013 Fisher

Wedge anchor for normal concrete with excellent cost performance.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M10Total Length (mm):71Screw Length (mm):31Max Attachment Thickness (mm):5Drill Diameter (mm):10Standard Construction Torque (N\m):30Maximum Tensile Load (kN):6.1Max shear load(kN):6.1Effective buried depth(mm):40European Technical Approval(ETA-07/0211)Packaged in a boxSteelSurface treatment: Hot-dip galvanized
