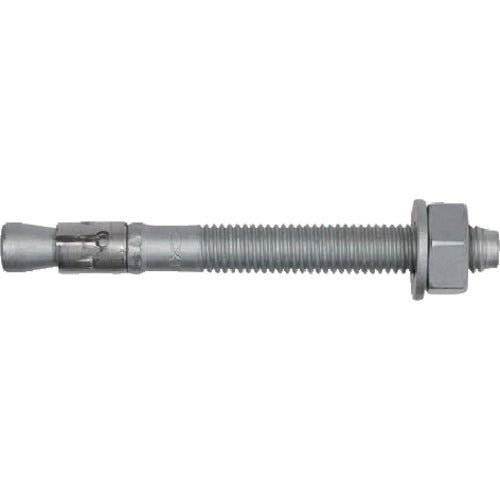

Bolt Anchor FBN2 508014 Fisher

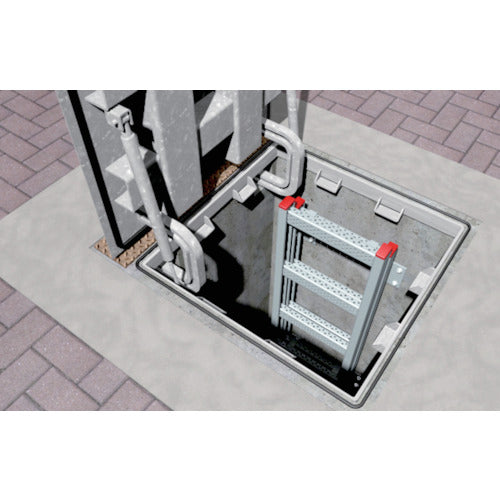

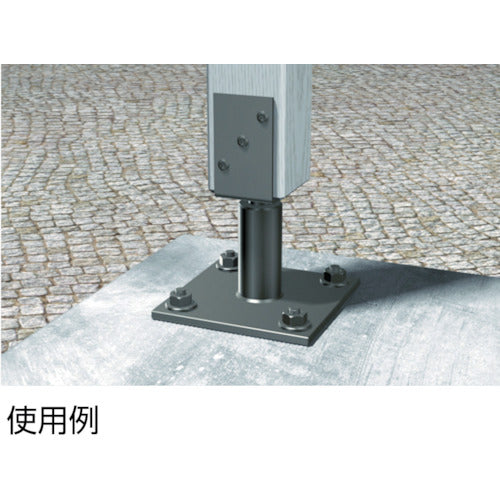

Wedge anchor for normal concrete with excellent cost performance.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M12Total Length (mm):86Screw Length (mm):39Max Attachment Thickness (mm):5Drill Diameter (mm):12Standard Construction Torque (N\m):50Maximum Tensile Load (kN):8.5Max shear load(kN):8.5Effective buried depth(mm):50European Technical Approval(ETA-07/0211)Packaged in a boxSteelSurface treatment: Hot-dip galvanized
