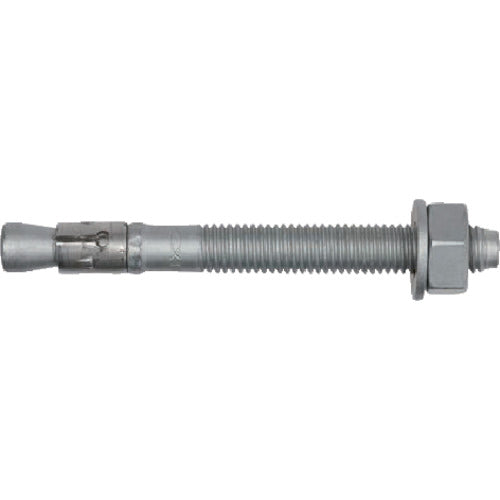

Bolt Anchor FBN2 508015 Fisher

Fischer's original structured expansion sleeve enables the best load bearing capability.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M20Total Length (mm):187Screw Length (mm):90Max Attachment Thickness (mm):30Drill Diameter (mm):20Standard Construction Torque (N\m):200Maximum Tensile Load (kN):25.9Max shear load(kN):38.3Effective buried depth(mm):105European Technical Approval(ETA-07/0211)Packaged in a boxSteelSurface treatment: Hot-dip galvanized
