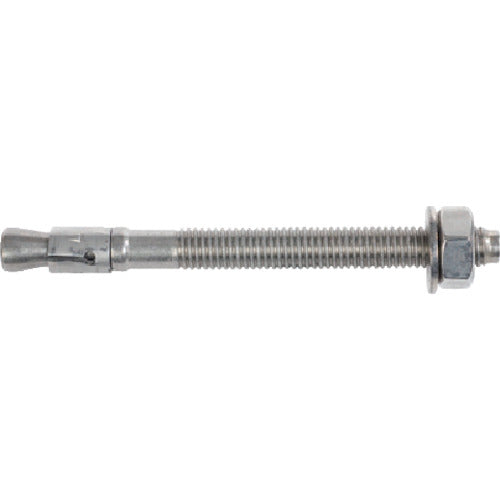

Bolt Anchor FBN2 508745 Fisher

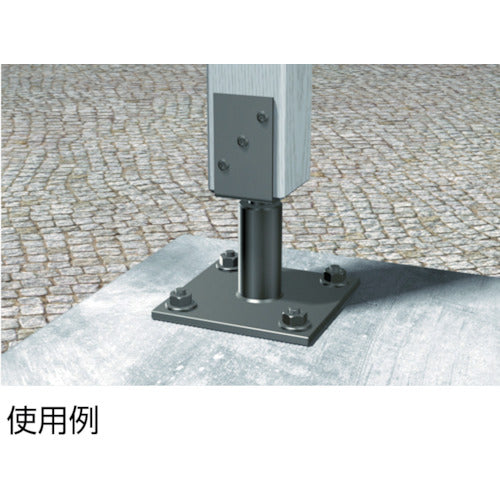

Wedge anchor for normal concrete with excellent cost performance.Shallow buried depth enables shallow drill hole depth and reduces interference with reinforcement. Quick construction is possible.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M16Total Length (mm):120Screw Length (mm):64Max Attachment Thickness (mm):15Drill Diameter (mm):16Standard Construction Torque (N\m):80Maximum Tensile Load (kN):12.6Max shear load(kN):29.0Effective buried depth(mm):65European Technical Approval(ETA-07/0211)Packaged in a boxStainless Steel (equivalent to SUS316)
