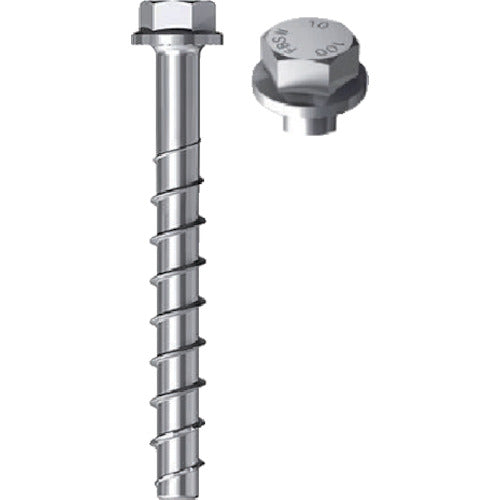

Concrete Screw Anchor 536871 Fisher

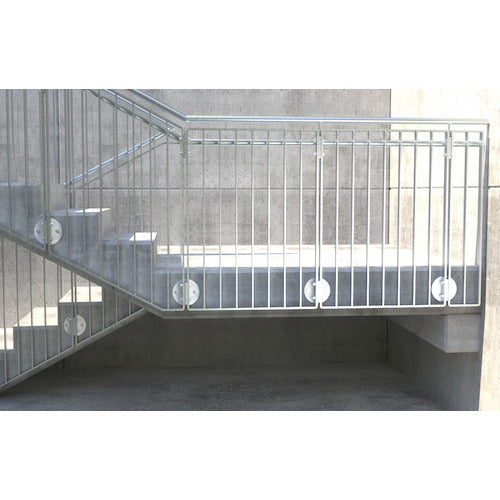

Driving not required. A threaded type high strength anchor.Can be casted with an impact wrench.Removal after casting is easy and can be used for temporary constructions.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M12Total Length (mm):120Screw Length (mm):110Width Across Flat (mm):17Pilot Hole Diameter (mm):12Buried Depth (mm):100Max Attachment Thickness (mm):10Maximum Tensile Load (kN):17.2Max shear load(kN):20.0Packaged in a boxSteelSurface treatment: Zinc plating
