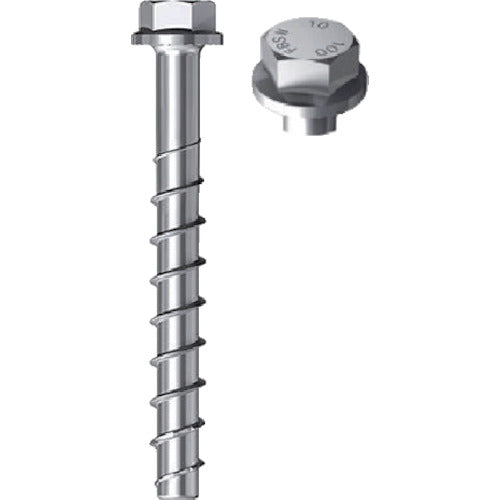

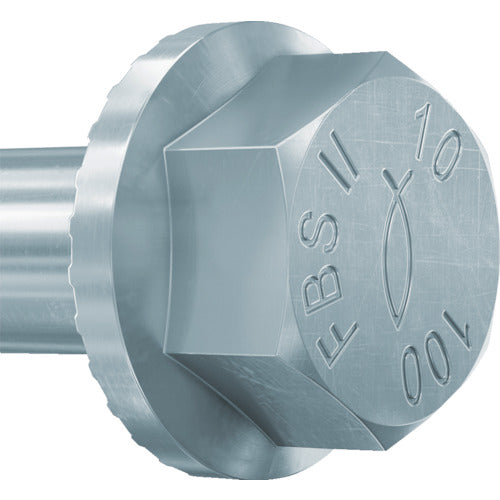

Concrete Screw Anchor 536877 Fisher

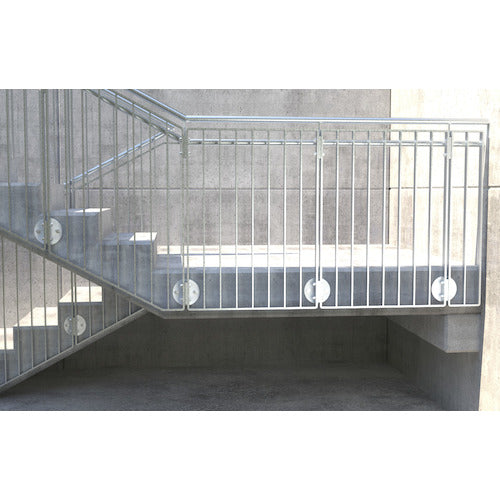

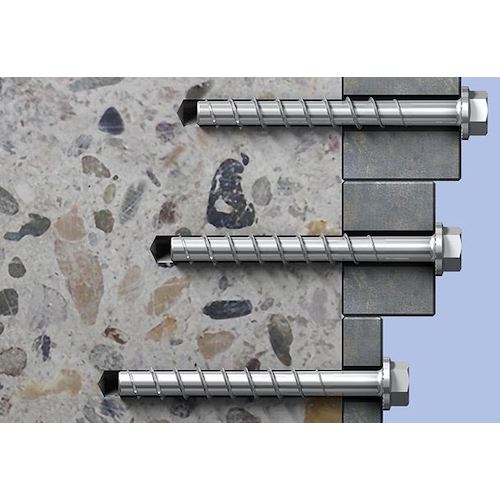

Driving not required. A threaded type high strength anchor.Can be casted with an impact wrench.Removal after casting is easy and can be used for temporary constructions.For concrete and dense stone.Installation of various mounts.Equipment construction.Railing and exterior work, etc.Nominal Designation of Thread:M14Total Length (mm):140Screw Length (mm):125Width Across Flat (mm):21Pilot Hole Diameter (mm):21Buried Depth (mm):125Max Attachment Thickness (mm):10Maximum Tensile Load (kN):24.0Max shear load(kN):30.5Packaged in a boxSteelSurface treatment: Zinc plating
