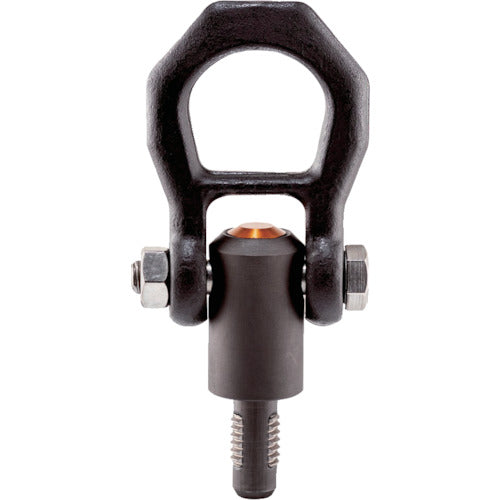

Threaded Lifting Pins Self-Locking 22352.0014 HALDER

【Features】
Hanging metal fittings that can be easily attached and detached with the touch of a button.
Eye bolt work time can be reduced by 85%.

【Use】
Work that involves frequently attaching and detaching eye bolts.

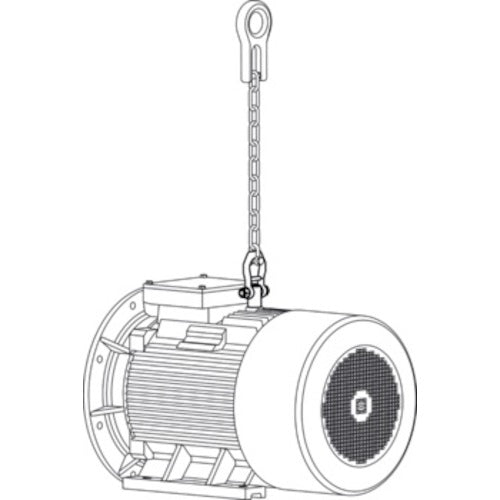

Transportation of products, parts, jigs, and molds.
As a substitute for eye bolts.

【Specification】
Working load (kN): 7.8
Bolt size: M14
Underneck length (mm): 24
Thickness (mm): 21.5
Thread diameter: M14
Load capacity F1 (kN): 7.8
Length (mm) :111.5
Width(mm):49

【Specification2】
Hanging device that can be easily attached and detached in a short time by pressing a button
Hanging device, safety factor 5, instead of eye bolts

【Material/Finish】
Pin/shackle: Heat-treated steel
Spring: Stainless steel
Push button: Aluminum (orange oxide film treatment)

【Set contents/accessories】
－

【caution】
Insert the pin all the way to the bottom of the neck and screw it all the way to the end.
After inserting the pin, check that the orange button has returned to its initial position and that the threaded part is completely clamped before use.
If the threaded part is not completely clamped, the workpiece may fall.
Please be sure to read the instruction manual before use.

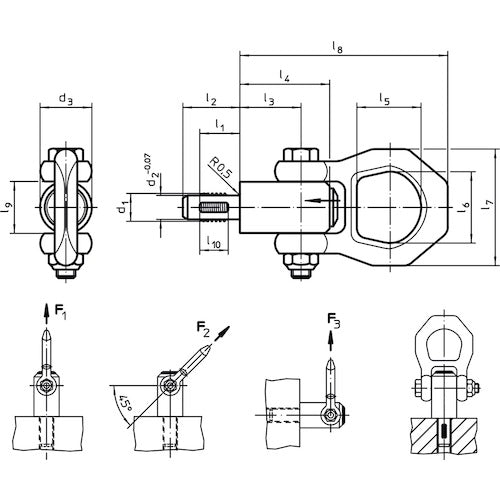

Load capacity F1 (kN) is the value in the vertical tensile direction.
