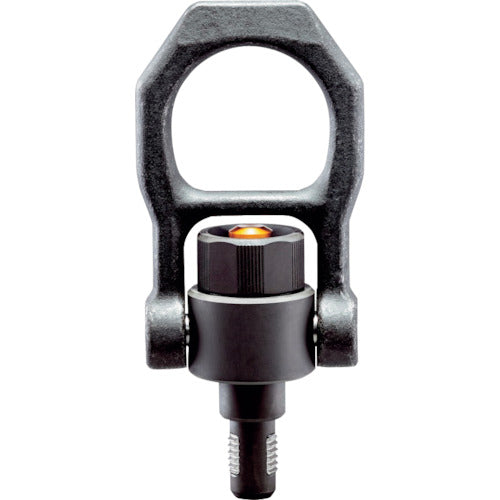

Threaded Lifting Pins Self-Locking 22353.0016 HALDER

【Features】
Hanging metal fittings that can be easily attached and detached with the touch of a button.
Eye bolt work time can be reduced by 85%.
The shackle rotates 360 degrees.
You can insert the pin into the screw hole while pressing the button.

【Use】

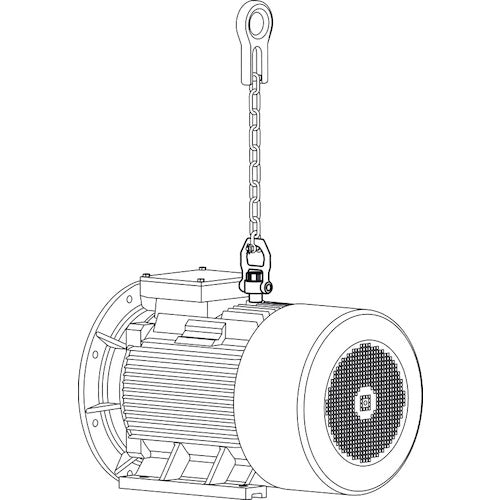

Work that involves frequently attaching and detaching eye bolts.

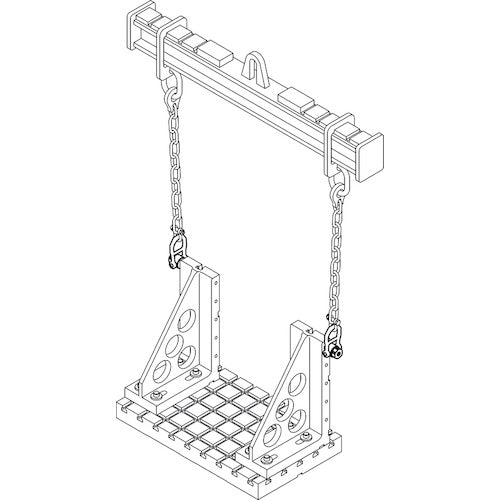

Transportation of products, parts, jigs, and molds.
As a substitute for eye bolts.

【Specification】
Working load (kN): 8.4
Bolt size: M16
Underneck length (mm): 24
Thickness (mm): 38
Load capacity F1 (kN): 8.4
Thread diameter: M16
Width (mm): 68
Length (mm): 148

【Specification2】
Hanging device that can be easily attached and detached in a short time by pressing a button
Hanging device, safety factor 5, shackle rotation type, horizontal hanging possible, instead of eye bolts

【Material/Finish】
Pin/shackle: Heat treated steel Spring: Stainless steel

【Set contents/accessories】
－

【caution】
Insert the pin all the way to the bottom of the neck and screw it all the way to the end.
After inserting the pin, check that the orange button has returned to its initial position and that the threaded part is completely clamped before use.
If the threaded part is not completely clamped, the workpiece may fall.
The working load is the permissible vertical load.
Please use only on steel screw holes.
