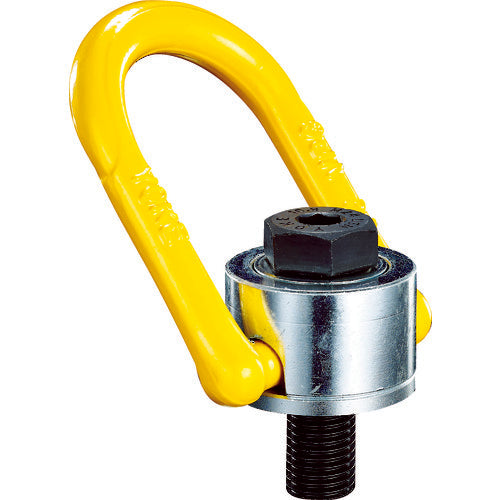

YELLOW POINT Anchor Point 8-231-020 YOKE
YELLOW POINT Anchor Point 8-231-020 YOKE
YELLOW POINT Anchor Point 8-231-020 YOKE
  • Load image into Gallery viewer, YELLOW POINT Anchor Point 8-231-020 YOKE
  • Load image into Gallery viewer, YELLOW POINT Anchor Point 8-231-020 YOKE
  • Load image into Gallery viewer, YELLOW POINT Anchor Point 8-231-020 YOKE

YELLOW POINT Anchor Point 8-231-020 YOKE

【order ID】1153368
【basic item number】8231020
【brand name】YOKE
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】YOKE Industrial Corp.
【Country of origin】Taiwan
【Weight】0.900KG

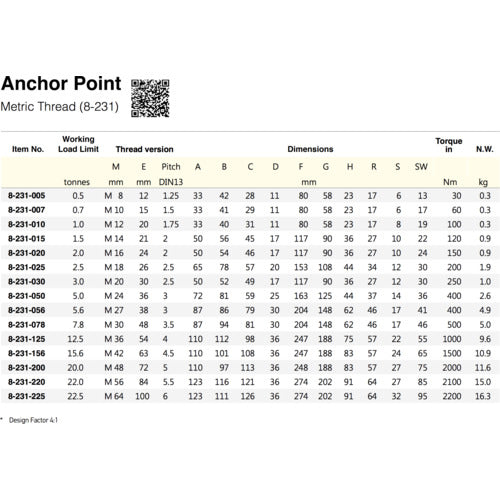

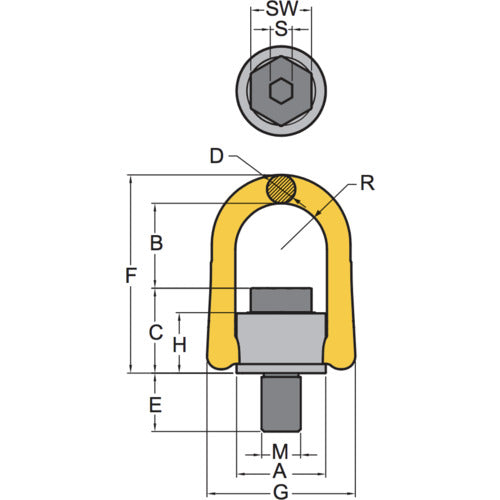

Ring swings 180 degrees in reference to the attaching surface and rotates 360 degrees about the axis.Lateral lifting and lifting up operations which are impossible by using JIS eye bolts are now possible.For transportation and turning over of large-size dies.Basic Working Load (t):3.2Bolt Size:M16Dimension (mm) G:90Dimension (mm) A:50Dimension (mm) F:117Dimension (mm) B:54EN1677-1, ASME B30.26 compliant

¥13,139
¥13,139
Sold out
