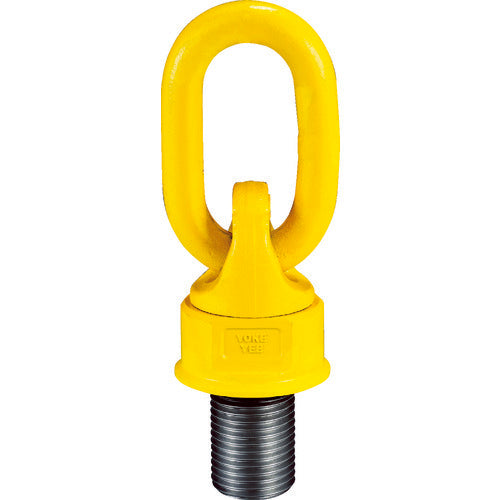

YELLOW POINT Swivel Point 8-271-120 YOKE
YELLOW POINT Swivel Point 8-271-120 YOKE
YELLOW POINT Swivel Point 8-271-120 YOKE
  • Load image into Gallery viewer, YELLOW POINT Swivel Point 8-271-120 YOKE
  • Load image into Gallery viewer, YELLOW POINT Swivel Point 8-271-120 YOKE
  • Load image into Gallery viewer, YELLOW POINT Swivel Point 8-271-120 YOKE

YELLOW POINT Swivel Point 8-271-120 YOKE

【order ID】1153405
【basic item number】8271120
【brand name】YOKE
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】YOKE Industrial Corp.
【Country of origin】Taiwan
【Weight】5.500KG

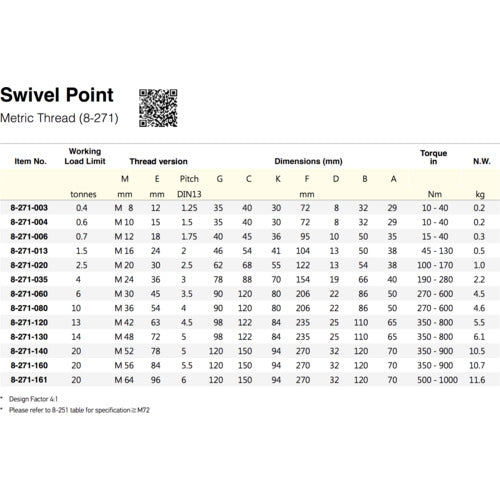

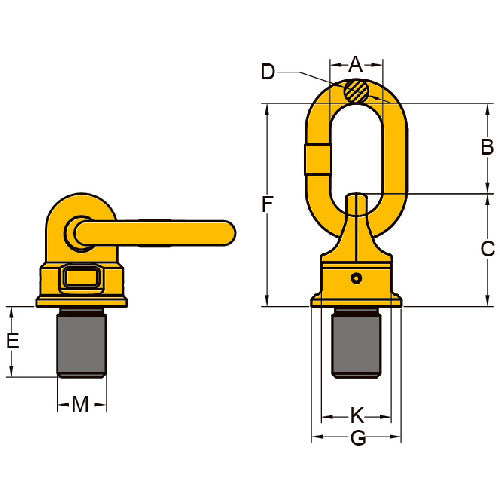

Embedded ball bearing realizes a smooth movement.Ring swings 180 degrees in reference to the attaching surface and rotates 360 degrees about the axis.Lateral lifting and lifting up operations which are impossible by using JIS eye bolts are now possible.For transportation and turning over of large-size dies.Basic Working Load (t):17.0Bolt Size:M42Dimension (mm) G:98Dimension (mm) A:65Dimension (mm) F:235Dimension (mm) B:110EN1677-1, ASME B30.26 compliantDGUV GS-OA-15-04 certified

¥62,805
¥62,805
Sold out
