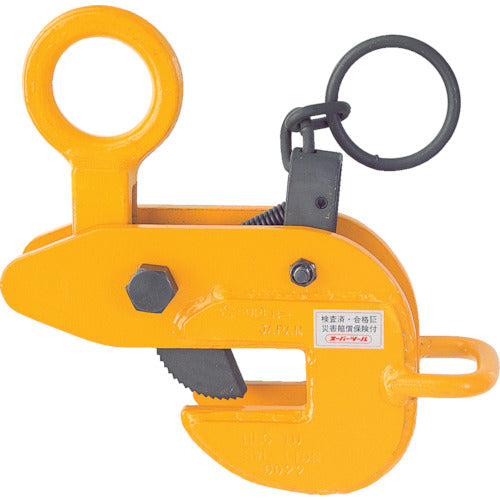

Lateral Lifting Clamp Splitted Jaw HLC0.5U SUPER TOOL

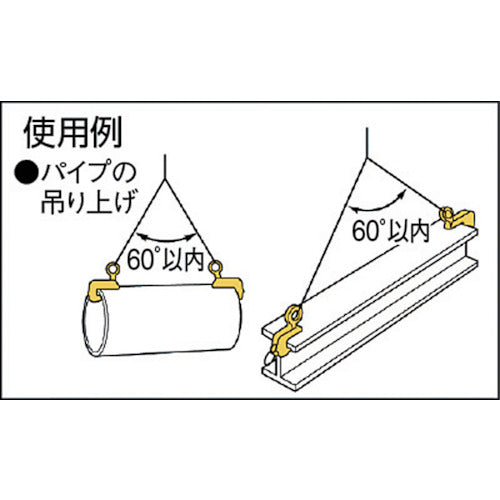

This type is optimum for lateral(horizontal)lifting clamping of section steels for structures and flat steel plates(2-point suspension by the longitudinal direction of section steels).The clamp firmly clamps without any load for having the spring type tightening lock mechanism.For lateral lifting of section steels for structures(H-shape, I-shape, L-shape section steels, etc.)and flat steel plates.Basic Working Load (t):0.5Jaw Width Range (mm):1 to 25D:40H:MAX.208H2:56Dimension (mm) L:170Equipped with a lock handle mechanismLower Chin Tip Crack (2 split)TypeEquipped with a handle that makes it easy to remove the workpiece
