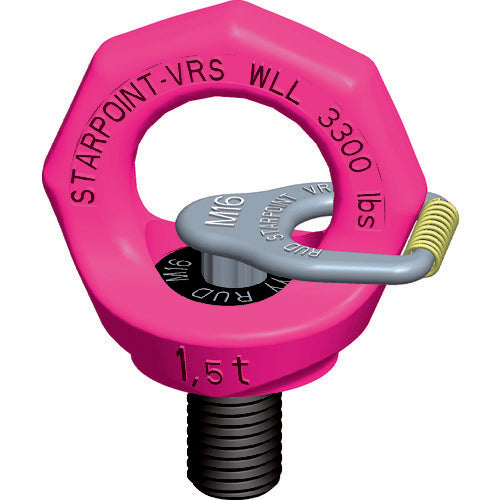

Star Point VRS-F-M16SP RUD

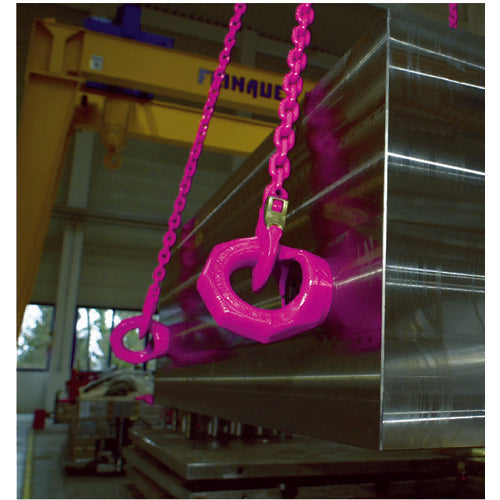

Lateral lifting work of the eye bolt which was impossible up to now can be performed safely.Main body part rotates 360 without loosening the bolt to the load direction.Possible to install it to molding die for overseas with CE marking product.High strength/compact design.Strong because of a ring without seams.Surface coating (patent) by pink powder that changes color at ambient temperature is applied.Up to M100 internal thread can be corresponded with conversion adapter (sold separately).Used for lifting heavy weight object such as molding die, wind power, civil engineering, shipbuilding, precision/machine tool, transportation industry.Basic Working Load (t):1.5Bolt Size (mm):M16Pitch (mm):1.5D:35K:65Dimension (mm) L:35Nickel Chrome Molybdenum Steel
