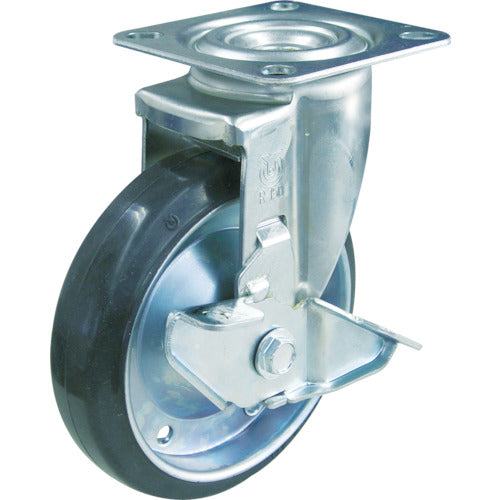

Rubber Caster(TYS Series) TYSB-150 TRUSCO

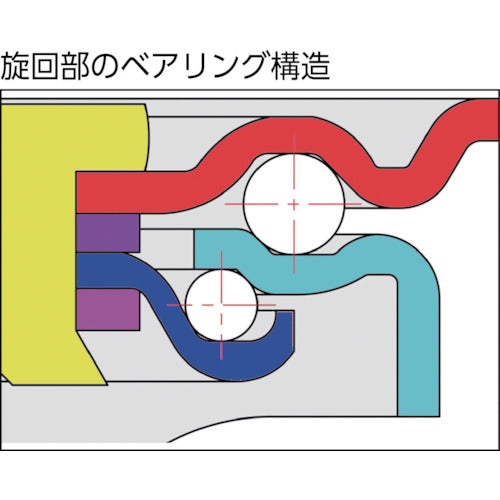

A standard caster with driveability and load capacity for light/medium load. A standard dimension caster used a lot for transportation dollies, roll box pallets and other general work uses.The flexible pivot part adopts double bearing.(daN):160Allowable Weight (kgf):163.2Wheel Diameter D (mm):150Wheel Width (mm):40Mounting Height H (mm):190Mounting Plate A x B (mm):102 x 102Mounting Pitch X x Y (mm):75 to 80 x 75 to 80Mounting Hole Diameter P (mm):11.0Plate TypeFlexible Type (with stopper)Metal Fitting: SteelMetal Fitting Surface Treatment: Trivalent Unichrome PlatedWheel: Rubber
