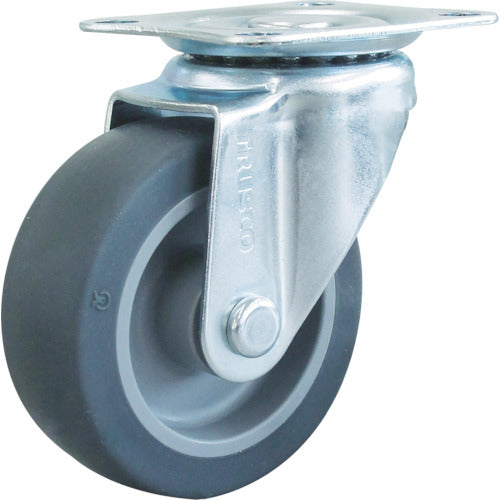

Elastomer Caster(TYS Series) TYSEL-65 TRUSCO

As the wheel employs elastomer(caster diameter 50 to 75mm), gray rubber(caster diameter 100 to 150mm), running marks are hard-to-generate on the floor surface.A standard caster with driveability and load capacity for light/medium load. A standard dimension caster used a lot for transportation dollies, roll box pallets and other general work uses.With elasticity similar level to rubber wheel, excellent in driveability even in uneven road surfaces.(daN):40Allowable Weight (kgf):40.8Wheel Diameter D (mm):65Wheel Width (mm):27Mounting Height H (mm):85Mounting Plate A x B (mm):70 x 58Mounting Pitch X x Y (mm):55 x 42Mounting Hole Diameter P (mm):8.8Plate TypeFlexible TypeThe flexible pivot part: Employs a double bearingMetal Fitting: SteelMetal Fitting Surface Treatment: Trivalent Unichrome Plated
