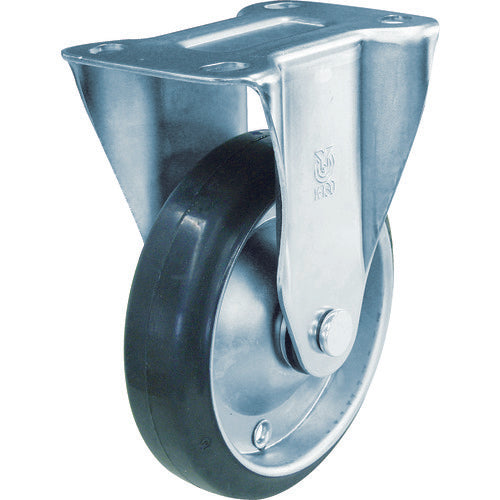

Rubber Caster(TYS Series) TYSK-100 TRUSCO

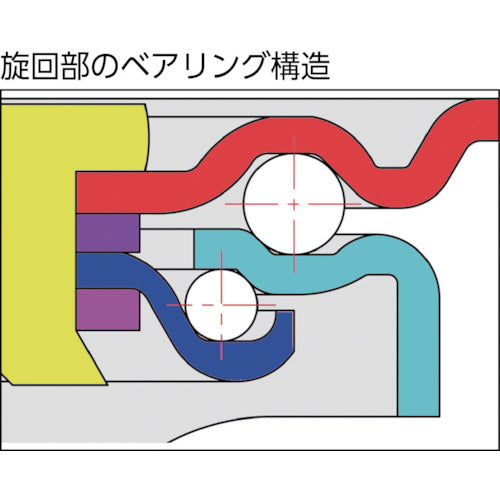

A standard caster with driveability and load capacity for light/medium load. A standard dimension caster used a lot for transportation dollies, roll box pallets and other general work uses.The flexible pivot part adopts double bearing.(daN):120Allowable Weight (kgf):122.4Wheel Diameter D (mm):100Wheel Width (mm):32Mounting Height H (mm):132Mounting Plate A x B (mm):110 x 78Mounting Pitch X x Y (mm):80 to 90 x 45 to 50Mounting Hole Diameter P (mm):11.0Plate TypeFixed TypeMetal Fitting: SteelMetal Fitting Surface Treatment: Trivalent Unichrome PlatedWheel: Rubber
