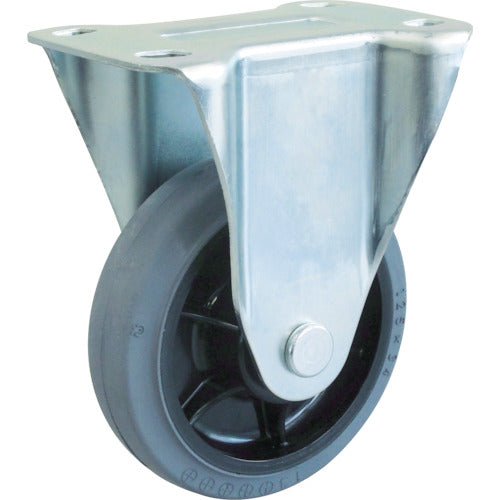

Elastomer Caster(TYS Series) TYSK-100G TRUSCO

As the wheel employs elastomer(caster diameter 50 to 75mm), gray rubber(caster diameter 100 to 150mm), running marks are hard-to-generate on the floor surface.A standard caster with driveability and load capacity for light/medium load. A standard dimension caster used a lot for transportation dollies, roll box pallets and other general work uses.With elasticity similar level to rubber wheel, excellent in driveability even in uneven road surfaces.(daN):120Allowable Weight (kgf):122.4Wheel Diameter D (mm):100Wheel Width (mm):32Mounting Height H (mm):132Mounting Plate A x B (mm):90 x 90Mounting Pitch X x Y (mm):80 to 90 x 45 to 50Mounting Hole Diameter P (mm):11.0Plate TypeFixed TypeMetal Fitting: SteelMetal Fitting Surface Treatment: Trivalent Unichrome Plated
