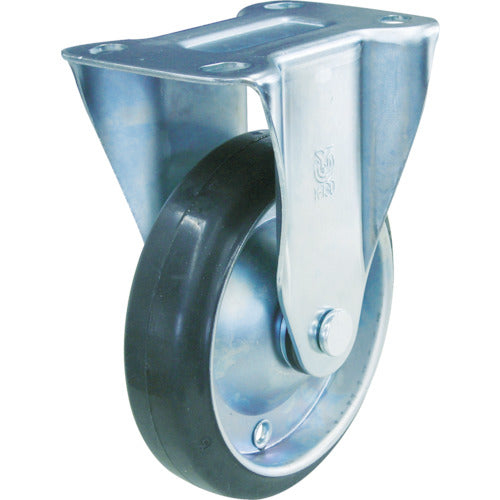

Rubber Caster(TYS Series) TYSK-125 TRUSCO

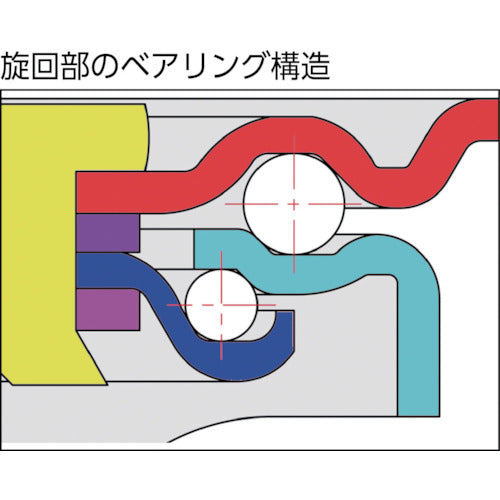

A standard caster with driveability and load capacity for light/medium load. A standard dimension caster used a lot for transportation dollies, roll box pallets and other general work uses.The flexible pivot part adopts double bearing.(daN):150Allowable Weight (kgf):153.0Wheel Diameter D (mm):125Wheel Width (mm):38Mounting Height H (mm):168Mounting Plate A x B (mm):140 x 94Mounting Pitch X x Y (mm):100 to 112 x 53 to 56Mounting Hole Diameter P (mm):11.0Plate TypeFixed TypeMetal Fitting: SteelMetal Fitting Surface Treatment: Trivalent Unichrome PlatedWheel: Rubber
