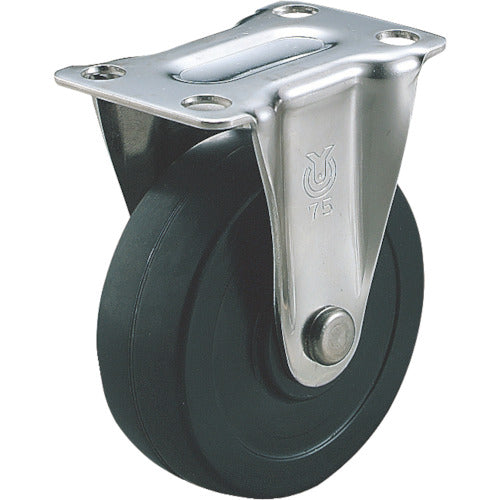

Rubber Caster(TYS Series) TYSK-65 TRUSCO

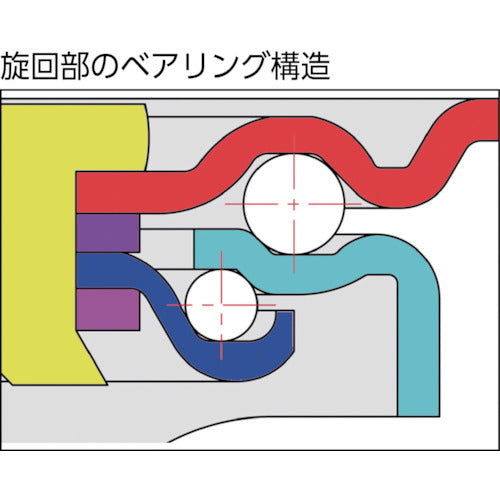

A standard caster with driveability and load capacity for light/medium load. A standard dimension caster used a lot for transportation dollies, roll box pallets and other general work uses.The flexible pivot part adopts double bearing.(daN):50Allowable Weight (kgf):51.0Wheel Diameter D (mm):65Wheel Width (mm):25Mounting Height H (mm):85Mounting Plate A x B (mm):70 x 47Mounting Pitch X x Y (mm):55 x 28Mounting Hole Diameter P (mm):8.8Plate TypeFixed TypeMetal Fitting: SteelMetal Fitting Surface Treatment: Trivalent Unichrome PlatedWheel: Rubber
