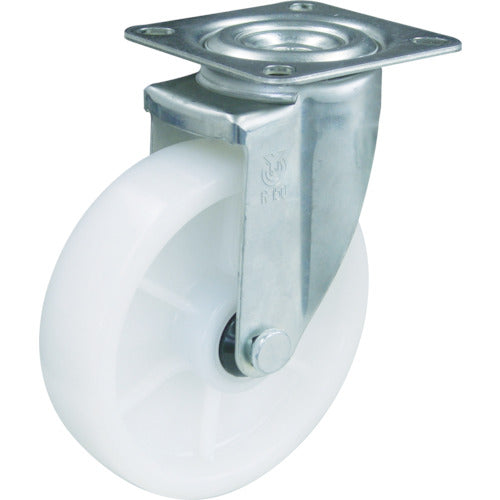

Nylon Caster(TYS Series) TYSNY-65 TRUSCO

A standard type caster for light/medium load with driveability and load capacity.A standard dimension caster used a lot for transportation dollies, roll box pallets and other general work uses.(daN):70Allowable Weight (kgf):71.4Wheel Diameter D (mm):65Wheel Width (mm):25Mounting Height H (mm):85Mounting Plate A x B (mm):70 x 58Mounting Pitch X x Y (mm):55 x 42Mounting Hole Diameter P (mm):8.8Plate TypeFlexible TypeMetal Fitting: SteelMetal Fitting Surface Treatment: Trivalent Unichrome PlatedWheel: Nylon
