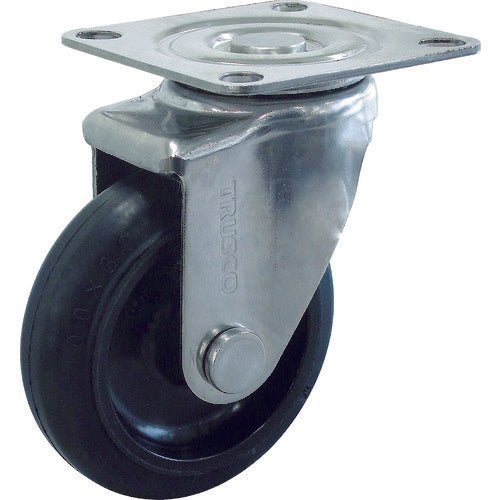

Stainless Rubber Caster(TYS Series) TYS-SUS-100 TRUSCO

Made of stainless steel with excellent water resistance and corrosion resistance.Suitable for use in wet area because of the all-stainless steel fittings.A standard caster with driveability and load capacity for light/medium load. A standard dimension caster used a lot for transportation dollies, roll box pallets and other general work uses.The 125mm and 150mm types are equipped with stainless steel bearing, so the wheels rotate smoothly.(daN):120Allowable Weight (kgf):122.4Wheel Diameter D (mm):100Wheel Width (mm):30Mounting Height H (mm):132Mounting Plate A x B (mm):90 x 90Mounting Pitch X x Y (mm):68 to 71 x 68 to 71Mounting Hole Diameter P (mm):11.0Plate TypeFlexible TypeThe flexible pivot part: Employs a double bearingMetal fittings: Stainless steelWheel: Rubber
