Hexagon Socket Button Head Bolt B074-0508 TRUSCO

【Features】
Uses SCM material and has high strength.
The head is button-shaped, so even if the head of the screw is exposed after tightening, it will not get caught, providing excellent safety. -It is also called a button cap because of its rounded head shape.
The head height is lower and the width is larger than that of hexagon socket head bolts.

【Use】
Since the head is rounder than a normal hexagon socket head bolt, it is used when you want the head to be lower or when you do not want it to stand out.

【Specification】

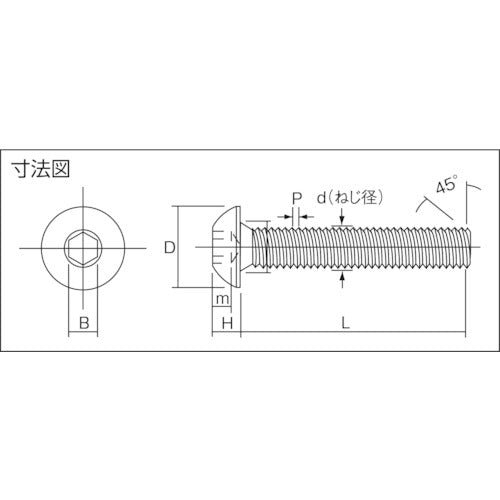

Dimensions (mm) D: M5
Dimensions (mm) L: 8
Thread pitch (mm): 0.80
Thread length (mm): 8
Strength classification: 12.9
Surface treatment: Black dyeing (triiron tetroxide coating) )
Thread type: Full thread
Head diameter (mm): 9.5
Head thickness (mm): 3.4
Hexagon hole width across flats (mm): 3

【Specification2】

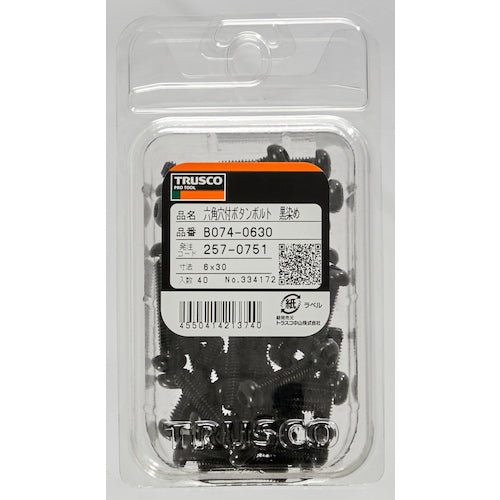

Package: Bolton pack (blister)
SSS standard product (SSS003-1977)

【Material/Finish】
Structural alloy steel (SCM435)
Surface treatment: Black dyed finish (triiron tetroxide coating)
