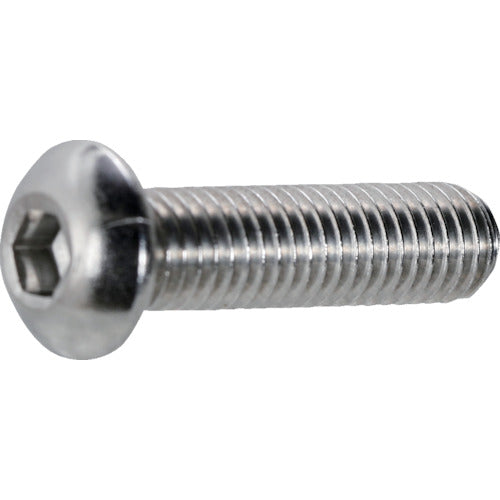

Hexagon Socket Button Head Bolt B128-0630 TRUSCO

【Features】
It is also called a button cap because of its rounded head shape.
The head height is lower and the width is larger than that of hexagon socket head bolts.

【Use】
The head is rounder than a normal hexagon socket head bolt, so it can be used when you want the head to be lower or when you don't want it to stand out.
It is similar in use to the truss head of a machine screw.

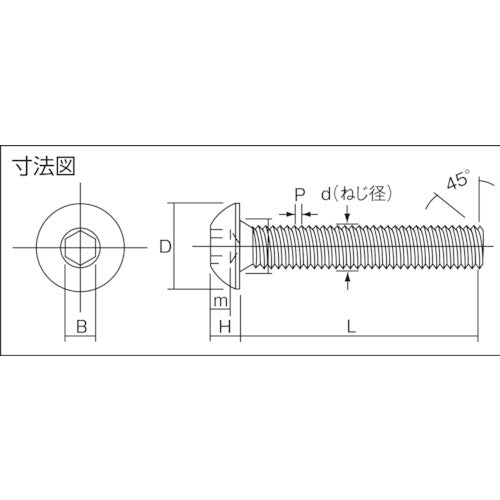

【Specification】
Dimensions (mm) D: M6
Dimensions (mm) L: 30
Thread pitch (mm): 1.00
Thread length (mm): 30
Strength classification: Equivalent to A2-50
Thread type: Full thread
Head Diameter (mm): 10.5
Head thickness (mm): 3.3
Hexagon hole width across flats (mm): 4

【Specification2】

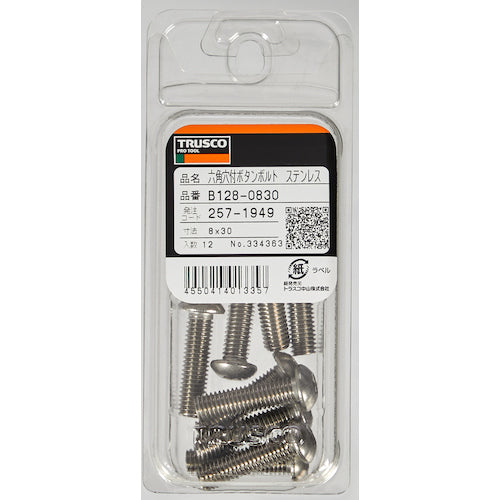

Package: Bolton pack (blister)
JIS B 1174 standard

【Material/Finish】
Stainless steel (SUS-XM7)

【Set contents/accessories】
－

【caution】
－
