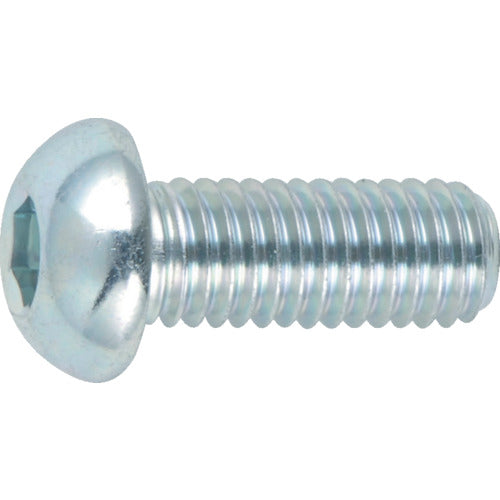

Hexagon Socket Button Head Bolt B774-1030 TRUSCO

【Features】
Uses SMC material and has high strength.
The head is button-shaped, so even if the head of the screw is exposed after tightening, it will not get caught, providing excellent safety. -It is also called a button cap because of its rounded head shape.
The head height is lower and the width is larger than that of hexagon socket head bolts.

【Use】
－

【Specification】
Dimensions (mm) D: M10
Dimensions (mm) L: 30
Thread pitch (mm): 1.5
Thread length (mm): 30
Strength classification: 10.9
Surface treatment: Trivalent chromate (white)
Screw Type: Fully threaded
Head diameter (mm): 18.0
Head thickness (mm): 6.0

【Specification2】

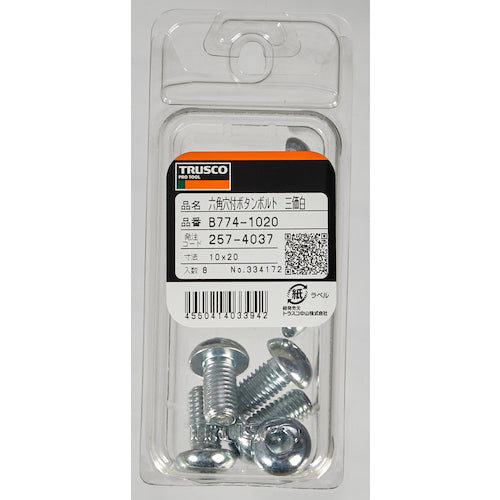

Package: Bolton pack (blister)
SSS standard product (SSS003-1977)

【Material/Finish】
Chromium molybdenum steel (SCM435)
Surface treatment: Trivalent chromate finish (white)

【Set contents/accessories】
－

【caution】
－
