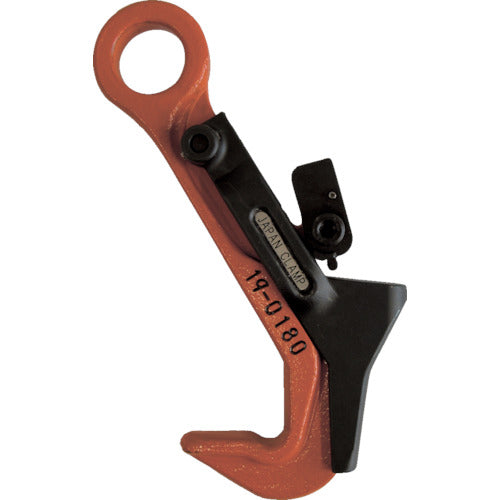

Special type Hook for Lifting Covering Plate(c/w Locking Device) FX-1 JAPAN CLAMP

【Features】
A locking device is provided on the back of the hook.
Large capacity and one-touch handling.
The ratchet mechanism allows the stopper to be fixed in any position.

【Use】

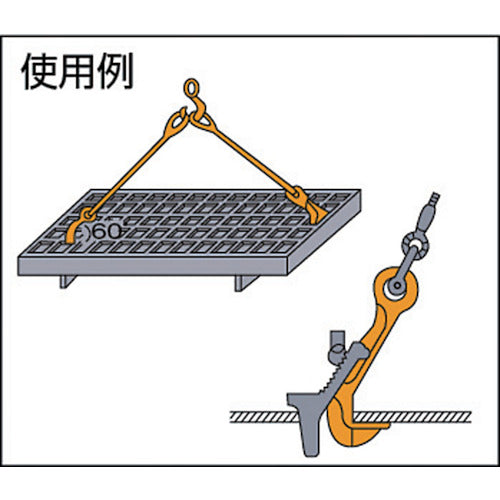

Dedicated for lifting lining boards.

【Specification】
Basic working load (t): 1
Dimensions (mm) C: 29
Dimensions (mm) D: 28
Dimensions (mm) H: 203
Dimensions (mm) L: 41

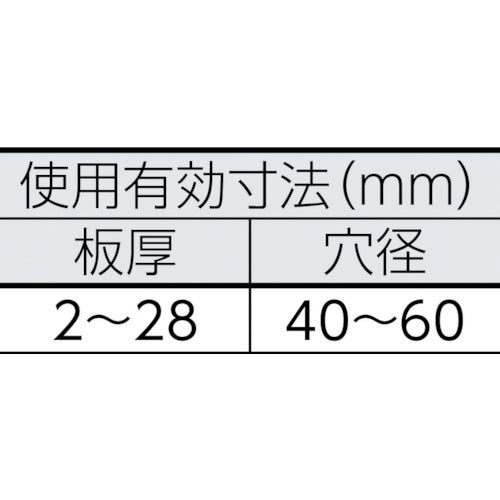

Effective usable dimensions (mm) Hole diameter :40~60
Effective dimensions for use (mm) Plate thickness: 2~28

【Specification2】
Comes with a stopper device
Used in a set of 2 or more
Hole diameter: 45 mm or more (for plate thickness 13 mm or more)

【Material/Finish】
Steel

【Set contents/accessories】
－

【caution】
Please be sure to use at least 2 pieces in a set.
For plate thicknesses of 13 mm or more, a hole diameter of 45 mm or more is required.
