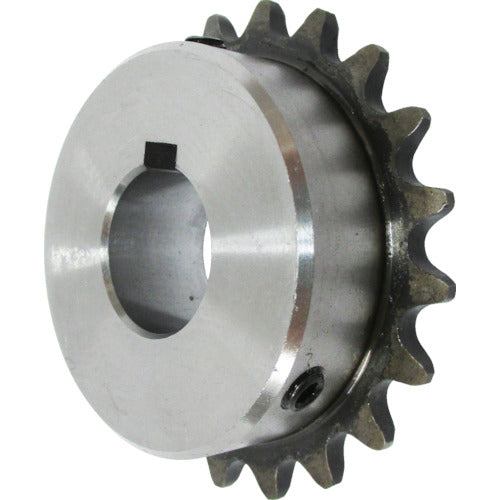

Sprocket FBN35B20D18 KATAYAMA
Sprocket FBN35B20D18 KATAYAMA
  • Load image into Gallery viewer, Sprocket FBN35B20D18 KATAYAMA
  • Load image into Gallery viewer, Sprocket FBN35B20D18 KATAYAMA

Sprocket FBN35B20D18 KATAYAMA

【order ID】2961822
【basic item number】FBN35B20D18
【brand name】KATAYAMA
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KATAYAMA CHAIN CO.,LTD.
【Country of origin】China
【Weight】320.000G

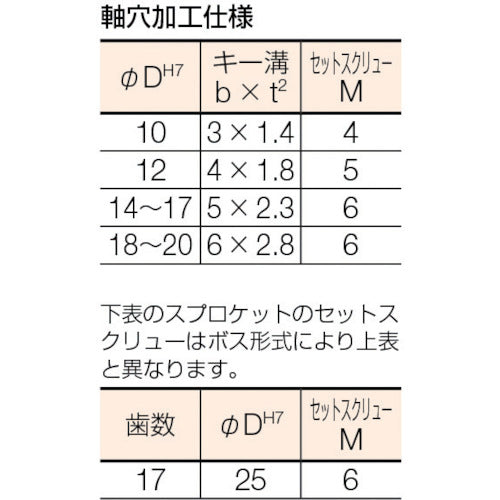

A processed products with shaft hole, key groove machining, set screws and screws. Can be used immediately, and shortens the setting time.With certain quality and stabled precision. All shaft hole, key groove, set screw are processed within JIS tolerance, there is no worry of trouble.New JIS key groove specifications.Number of teeth:20Outer Diameter (mm):66Shaft Hole Diameter (mm):18Compatible chain: No.35Chain Pitch: 9.525mmRoller link inner width: 4.78mmTooth width: 4.3mmCarbon Steel for Mechanical StructuresHeat Treatment: Tooth tip induction quenching

¥1,579
¥1,579
Sold out

Delivery：approximate 2-3 business days to ship from Japan
