Gears S1.5BP15B-1506 KG
Gears S1.5BP15B-1506 KG
  • Load image into Gallery viewer, Gears S1.5BP15B-1506 KG
  • Load image into Gallery viewer, Gears S1.5BP15B-1506 KG

Gears S1.5BP15B-1506 KG

【order ID】1160919
【basic item number】S1.5BP15B1506
【brand name】KG
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KYOUIKU GEAR MFG CO.,LTD.
【Country of origin】Japan
【Weight】12.400G

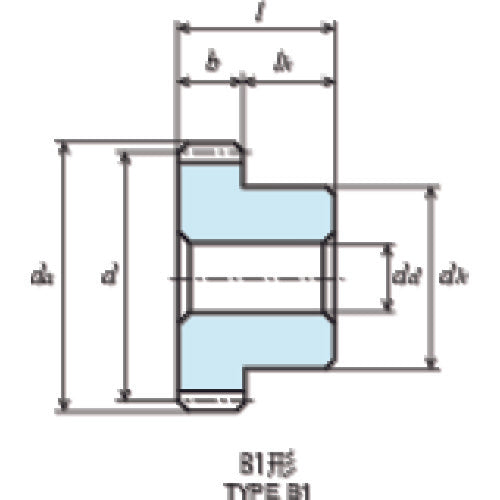

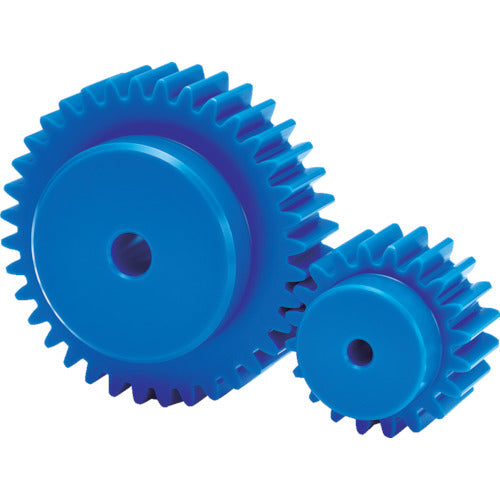

It is food contact, blue POM gear series, and made of blue polyacetal resin.The blue POM not included in the food material colors is optimum for food rapping equipment as countermeasures against contamination by foreign substances.Module:1.5Number of teeth:15Reference diameter d (mm):22.5Addendum circle diameter:phi25.5Hub outer diameter:phi18Tooth width b (mm):15Hole Diameter (mm):6Total Length (mm):30Hub length(mm):15Type:B1Module: 1.0 to 1.5US/EU market food contact uses/rules compatibleJISB1702-1(ISO) Class 9 to 10Blue polyacetal resin

¥1,510
¥1,510
Sold out

Delivery：approximate 2-3 business days to ship from Japan
