Ball Screw(Flat Contact) BSF10X35 IMAO
Ball Screw(Flat Contact) BSF10X35 IMAO
Ball Screw(Flat Contact) BSF10X35 IMAO
  • Load image into Gallery viewer, Ball Screw(Flat Contact) BSF10X35 IMAO
  • Load image into Gallery viewer, Ball Screw(Flat Contact) BSF10X35 IMAO
  • Load image into Gallery viewer, Ball Screw(Flat Contact) BSF10X35 IMAO

Ball Screw(Flat Contact) BSF10X35 IMAO

【order ID】1060911
【basic item number】BSF10X35
【brand name】IMAO
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】IMAO CORPORATION
【Country of origin】Japan
【Weight】16.200G

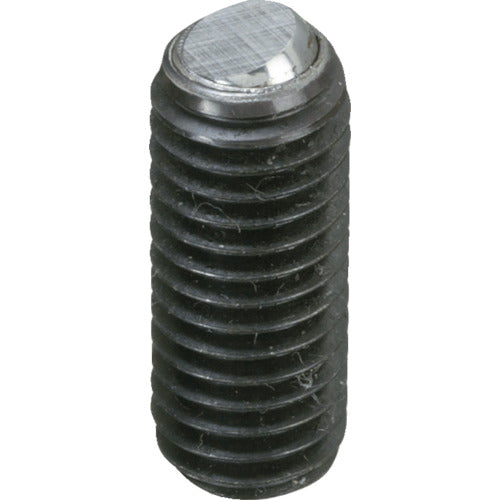

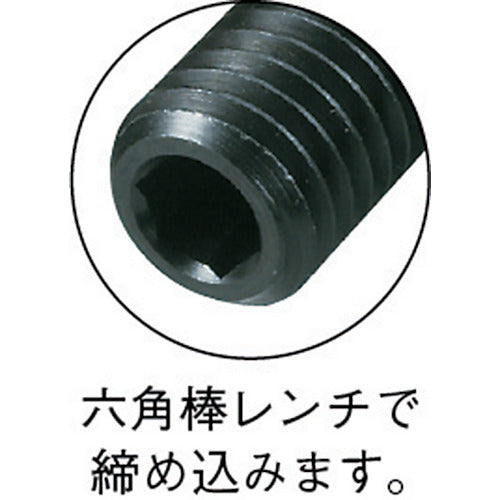

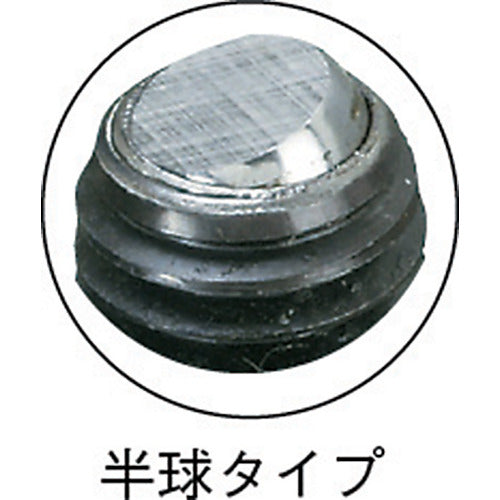

Because it receives force on the surface, it can be used when the work is soft, when tightening force is applied, when there is an angle, etc.Optimum when the other side avoids scratch, and when it has a wide angle.Support on the surface.Screw Dimension:M10 x 1.50Ball Protrusion Amount (mm):0.7Total Length (mm):35Ball Diameter (mm):7.0Hexagon Width Across Flats (mm):5.0Hemisphere TypeBody: SteelBall: SteelMechanical spring is not built in and the ball is not dented.

¥380
¥380
Sold out
