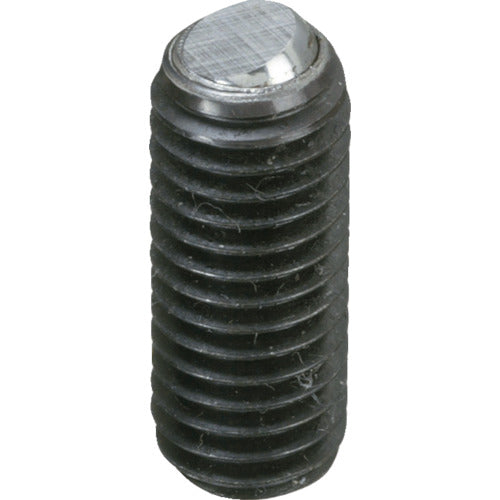

Ball Screw(Flat Contact) BSF16X50 IMAO

【order ID】1061071
【basic item number】BSF16X50
【brand name】IMAO
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】IMAO CORPORATION
【Country of origin】Japan
【Weight】48.000G

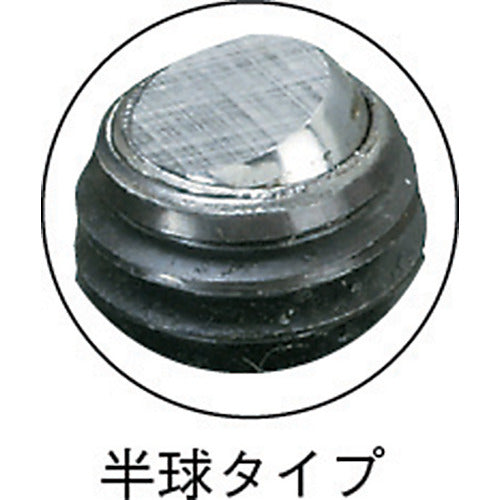

Because it receives force on the surface, it can be used when the work is soft, when tightening force is applied, when there is an angle, etc.Optimum when the other side avoids scratch, and when it has a wide angle.Support on the surface.Screw Dimension:M16 x 2.00Ball Protrusion Amount (mm):1.0Total Length (mm):50Ball Diameter (mm):12.0Hexagon Width Across Flats (mm):8.0Hemisphere TypeBody: SteelBall: SteelMechanical spring is not built in and the ball is not dented.

¥790
¥790
Sold out
